231001, IDEM ES Series Twist Release Emergency Stop Push Button, Surface Mount, 2NC + 1NO, IP69K

IDEM Emergency Stop Pushbutton

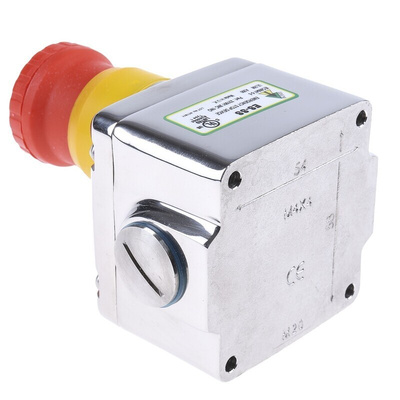

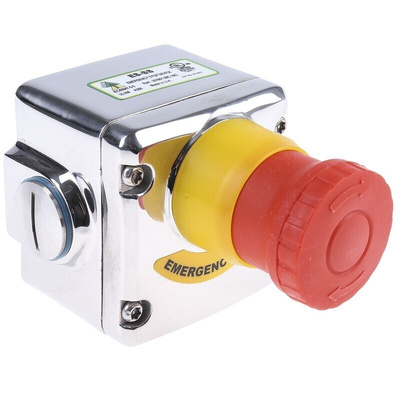

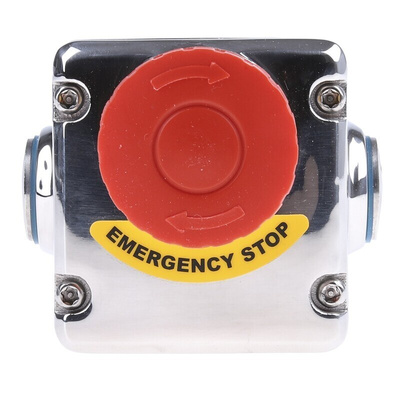

The IDEM ES-SS series emergency stop pushbutton has a red, unpainted round style head with the diameter of 40mm. Its housing is made from polyester material and the button is made of plastic material. This device is a standard duty emergency stop switch (E-Stop), designed to provide robust emergency stop protection for machines or exposed conveyors.
A special lid safety trip mechanism enables the safety contacts to open if the lid is removed. This pushbutton has a contact current rating of 3A and a voltage rating of 240V. They are suitable for use within virtually all industry sectors.

Features and Benefits

2NC/1NO contact configuration
Twist to reset method

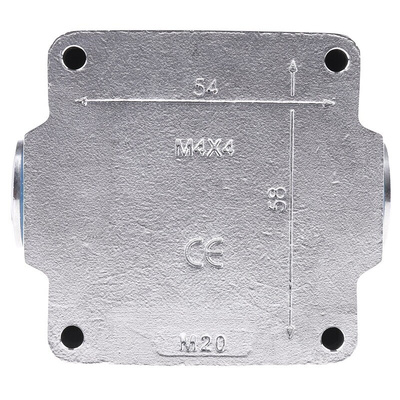

Conduit entry of M20
Non-illuminated
High pressure hosed with detergents at high-temperature
Connects to most safety relays to give up to PLeCat.4

Certifications

ISO13850
EN60947-5-1
EN60947-5-5
UL 508
ISO13850
ISO13849-1

102531 ES-P ES-SS Data Sheet

IDEM Safety Switches Video

Machine Guarding and Safety Range Overview
