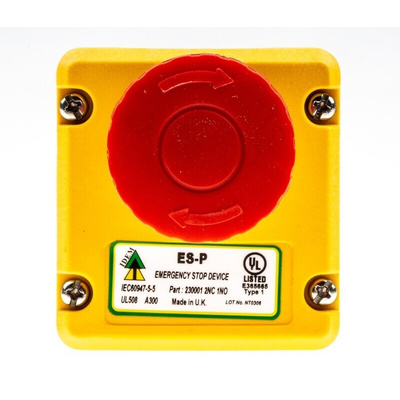

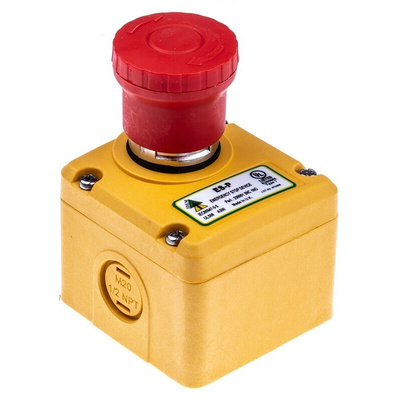

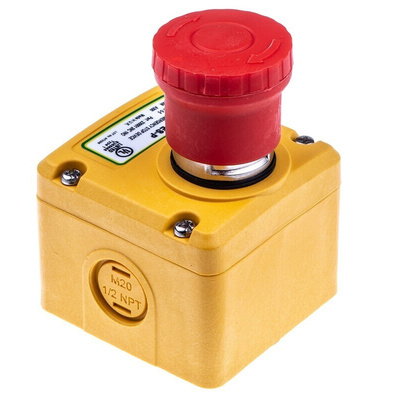

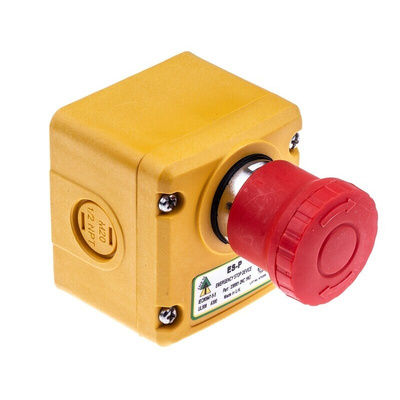

230001, IDEM ES Series Twist Release Emergency Stop Push Button, Surface Mount, 2NC + 1NO, IP67

IDEM Emergency Stop Pushbutton

The IDEM ES-P series emergency stop pushbutton has a red round style head with a diameter of 40mm. Its housing is made from polyester material and the button is made of plastic material. This device is a standard duty emergency stop switch (E-Stop), designed to provide robust emergency stop protection for machines or exposed conveyors. A special lid safety trip mechanism enables the safety contacts to open if the lid is removed
. This pushbutton has a contact current rating of 3A and a voltage rating of 240V. It is suitable for use within virtually all industry sectors.

Features and Benefits

2NC/1NO contact configuration
Twist to reset method
Non-illuminated
Connects to most of the safety relays to give up to PLeCat.4
Surface mount

Certifications

ISO13850
EN60947-5-1
EN60947-5-5
UL 508
approved
ISO13850
ISO13849-1
IEC60947-5-1
IEC60947-5-5
