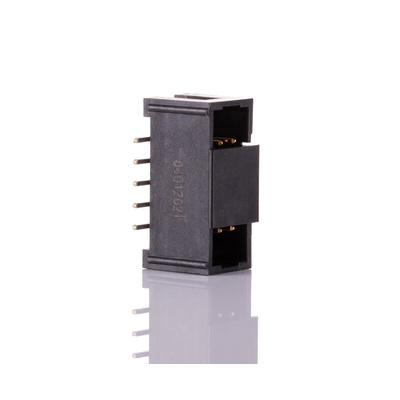

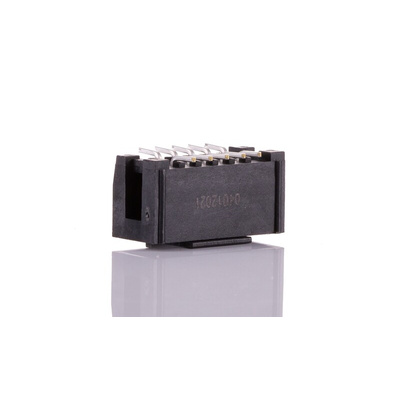

D2510-6V0C-AR-WD, 3M D2500 Series Straight Surface Mount PCB Header, 10 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

8271994
Номер производителя: D2510-6V0C-AR-WDПроизводитель: 3M
Цена за шт.
854.10 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

Low Profile Boxed Headers

Brought to you by 3M, these 2500 Series Four-Wall box Headers are a polarized, low-profile design, ideal for when space-saving efficiency is a priority. The PCT material of the Four-Wall box Header is suitable for high temperature (260 °C), paste-in-hole, re-flow soldering operations. Ideal for most wire to board connection applications.

Features and Benefits:

• Headers can be retro fitted with latches
• Long latches are required if a socket strain relief clip is being utilised
• Mates with cable sockets stock number 121-0810 typical and board mounted sockets

Note

N25XX-6002 Manufacturers Part Numbers are used for standard a PCB thickness of 1.57 mm.
N25XX-6003 Manufacturers Part Numbers are used for a PCB thickness of 2.39 to 3.18 mm.
For side polarisation use with stock no. 629-0029

3M PCB Header, 1.75A Current Rating, 2.54mm Pitch - D2500 Series - D2510-6V0C-AR-WD

Need a simple way to make multiple wired connections to a printed circuit board? Try this 2-row PCB header from 3M. It has a straight orientation and a standardised pitch of 2.54mm for straightforward insertion. Polarisation prevents mating errors to increase reliability and save installation time. As the pins are shrouded, they're protected against damage and easy to lock for a secure fit.

• Solder termination method is quick and simple
• UL 94V‑0 flammability rating indicates it's self-extinguishing inside 10 seconds to prevent the spread of fire
• Brass contacts for effective conductivity
• PCT housing for durability in tough settings

Applications

• Vehicle manufacturing
• Telecommunications

How do I mount this PCB header?

For straightforward installation, this header is surface mounted directly to the PCB. Surface mounting lets you place components close together on the board so your setup can be compact and lightweight.

Техническая спецификация
pdfDatasheet
pdfCatalogue - Mating Guide
pdfLine Drawing - 2500 SERIES
Защищенный/Незащищенный:
Shrouded
Кол-во контактов:
10
Количество рядов:
2
Концевая заделка:
Припой
Материал контактов:
Латунь
Номинал тока:
1.75A
Номинальное напряжение:
1.0 kV
Ориентация корпуса:
Прямой
Покрытие контактов:
Золото
Серия:
D2500
Система соединителя:
Wire to Board
Тип монтажа:
Поверхностное крепление
Шаг:
2.54мм
