7000-13581-0000000, Murrelektronik Limited for use with Flange Connector

M12 Flange Mount Bulkhead Connectors

M12 flange mount bulkhead connectors from Murr Elektronik, offered in 4 way and 5 way male and female variants with A coding and TPE wires at 0.5 metres in length. The 4 wire versions (brown, white, black and blue) and the 5 wire versions (brown, white, blue, black, grey) attached wires are multi-stranded 0.34mm², with PP insulation. The connector contacts are rated to a maximum current capacity of 4A and with an overall operating voltage of a maximum of 250 Vac/dc for 4 way connectors and 125 Vac/dc for the 5 way M12 connector versions. These durable M12 bulkhead connectors have an IP67 rating when mated.

Operating voltage 250 Vac/dc max (4 way), 125 Vac/dc (5 way)
Number of wires 4 or 5 x 0.34mm²
Screw thread M12x1mm
IP67 once mated
Operating temperature range -40 to +80 °C

Standards

EN60529

MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors

A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.

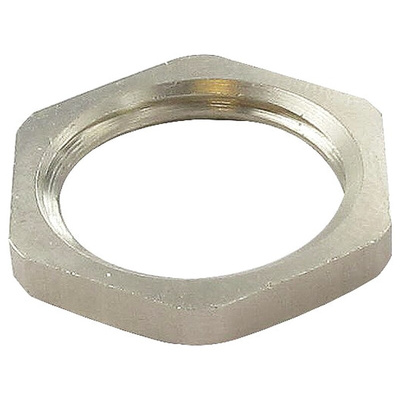

Locknut for M12 bulkhead connectors

Datasheet drawing
