7000-78391-0000000, Murrelektronik Limited for use with Flange Connector

7/8 Inch Flange Mount Connectors

7/8 flange mount bulkhead connectors from Murr Elektronik, 5 way male and female variants with 5 attached wires at 0.75 metres in length (brown, white, blue, black, green/yellow) AWG18 with PVC insulation. The connector contacts are rated to a maximum current capacity of 9A and an overall operating voltage of a maximum of 230/400 Vac/dc. These durable 7/8 bulkhead connectors have an IP67 rating when mated and have a PG13.5 mounting set.

Operating voltage 230/400 Vac/dc max.
Maximum current 9A
IP67 once mated
Operating temperature range -25 to +85 °C

Standards

EN60529

MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors

A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.

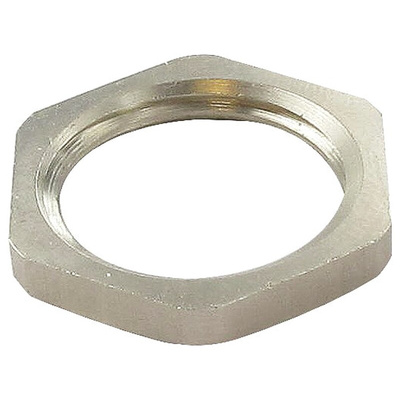

Locknut for 7/8 bulkhead connectors
