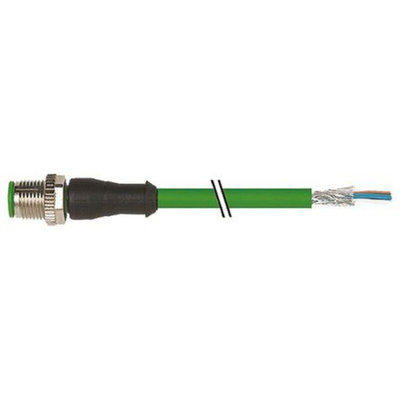

7000-14541-7940500, Murrelektronik Limited Straight Male 5 way M12 to Unterminated Sensor Actuator Cable, 5m, Кабельная сборка

M12 Shiielded Ethernet Cable Assembly, D Coded

A selection of M12 male 4 way ethernet CAT5e D-coded cable mounted connectors with specified shielded cable lengths of 5, 10 and 20 metres, to a free end. These plastic housing M12 ethernet connectors are resistance to a variety of chemicals and oils and are IP67 rated once mated.

Operating voltage 60 Vdc
Operating current max. 4A
No. and Diameter of wires 2x2 AWG22
Green outer sheath with white, yellow, blue and orange wires.
IP67 when mated (connector end)
Operating temperature range -25 to +85 °C

Approvals

c SA us, c UK us listed

MURR Elekronik Sensor - Actuator Cable Assemblies and Connectors

A comprehensive offering of M8 and M12 connector cable assemblies, distribution units, M8 and M12 connectors, fieldbus connector cable assemblies, couplers and tooling from MURR Elektronik.

M12, male, 4W,Ethernet Cat 5e cable assembly 5m
