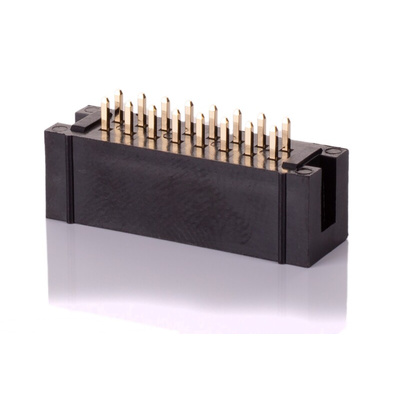

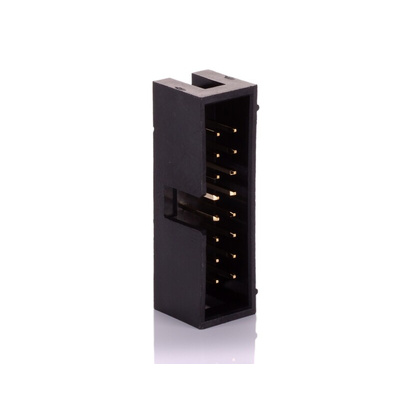

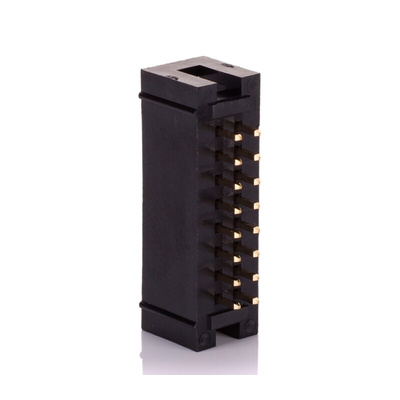

30316-6002HB, 3M 303 Series Straight Through Hole PCB Header, 16 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

Low Profile 303 Series Headers

The 3M 303 Series four wall box headers are a polarized space saving low profile design. These headers are available in various contact quantities.

All over gold flash
Sturdy body
End windows

3M PCB Header, Straight Body Orientation, 1A Current Rating - 303 Series - 30316-6002HB

Choose this PCB header from 3M when you need a quick and easy way to make wire-to-board or board-to-board connections on a PCB. Its connectors are polarised for accurate mating, making installation easier and preventing potentially damaging mating errors. The pins are shrouded for added protection against bending, so you can be sure of a secure fit.

• Pitch of 2.54mm isolates conductors for a reliable connection without arcing
• UL 94V‑0 flammability rating indicates it's self-extinguishing in 10 seconds to prevent the spread of fire
• Gold-plated contacts to resist rust
• Surface-mounted for straightforward installation

Applications

• Blood-pressure monitors
• Radar systems
• Vehicle manufacturing

Is this PCB header suitable for use in challenging environments?

Yes, it's made of hard-wearing glass-filled polyester for corrosion resistance and high durability. A wide operating temperature range of -55 to +105°C means it can withstand harsh conditions.

Datasheet
