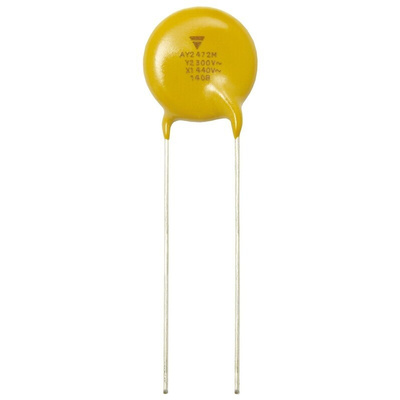

AY2331K29Y5SS63L7, Vishay Single Layer Ceramic Capacitor (SLCC) 330pF 300V ac ±10% Y5S Dielectric, AY2, Through Hole +125°C Max Op. Temp., Конденсатор

AC Line Rated Ceramic Disc Capacitors - AY2 Series

AY2 Series AC Line Rated Ceramic Disc Capacitors for Automotive applications incorporating the very latest in ceramic material, capacitor design and production technologies. (Class X1, 440 VAC, Class Y2, 300 VAC) A further development of the VY2 series, the high quality AY2 series has a long lifetime and high reliability to meet the demands of the industrial market.

The AY2 series are leaded Y2 rated capacitors that comply with the IEC 60384-14 safety standard and is qualified according to the AEC-Q200 specification, which includes the most stringent stress tests for passive components. With its superior performance and reliability, the AY2 series can withstand more than 2000 temperature cycles without a single failure, twice the AEC standard.

Applications for The AY2 Capacitors include: AC line filtering; On-board chargers and battery management of e-cars and PHEVs; high-quality industrial applications

Note

Also available is the AY2 Series Automotive Capacitor Ceramic disc Kit, RS Stock No. 8286555, containing 7 capacitance values and 10 pieces each value.

Automotive

AY2 Series AC Line Rated Ceramic Disc Capacitor
