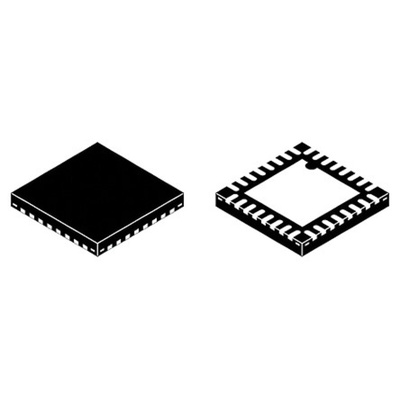

Texas Instruments CC1200RHBT RF Transceiver, 32-Pin VQFN

CC1200 series Sub-1GHz 802.15.4g RF Transceiver

The Texas Instruments CC1200 device is a Sub-1GHz radio transceiver designed for high performance with low power consumption. The CC1200 is optimized for IEEE 802.15.4g protocol Smart Grid/Meter applications.

RF Frequency bands: 169, 433, 868, 915, 920MHz ISM/SRD bands
RF Output Power: up to +16dBm
Receiver Sensitivity: -123dBm @ 1.2kbps, -109dBm @ 50kbps
Modulation: FSK, GFSK, QFSK, GQFSK, MSK, OOK
Digital channel filter bandwidth: 9.5kHz to 1600kHz
OTA Data Rate: 1.2kbps to 1250kbps
Dedicated features for 802.15.4g: CRC 16/32, FEC, Dual Sync Detection (FEC & non-FEC packets), Whitening
Separate 128-byte Tx & Rx FIFOs
Coding Gain support for increased range and robustness
Enhanced Wake-On-Radio (eWOR) function
Digital RSSI measurement
Automatic Clear Channel Assessment (CCA) for Listen-Before-Talk (LBT) systems
Support for Antenna Diversity
Host communication: serial SPI
Power supply: +2.0V to +3.6Vdc
Operating temperature range: -40 to +85°C
Applications: Wireless Metering & Wireless Smart Grid (AMR & AMI)\n, IEEE 802.15.4g Systems, Home & Building Automation\n, Wireless Alarm & Security Systems, Industrial Monitoring & Control\n, Wireless Healthcare, Wireless Sensor Networks & Active RFID\n, communication for the Internet of Things (IoT)

RS Product Codes
827-4631 CC1200RHBT

Approvals

ETSI, FCC, ARIB
