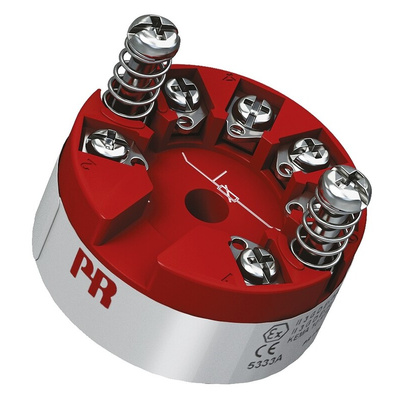

5333A, PR Electronics 5300 Temperature Transmitter Linear Resistance, RTD Input, 8 → 35 V dc, Преобразователь температуры

5300 Series - In-Head Temperature Transmitter

PR Electronics 5300 series single input temperature transmitter offers unrivalled performance In applications making heavy demands on accuracy to convert a wide array of input types to a 4 – 20 mA output signal. The 5300 series transmitters are quickly and easily programmable to the specific application. Configuration via a standard PC and user-friendly software, PReset, available as a free download. Parameters for input, output, sensor error detection and process calibration can be configured via PReset within a few minutes.

Features and Benefits

• For DIN form B sensor head mounting
• Sensor drift detection maintains measuring point reliability
• Flexible input capability, with choice of output modes
• Superior accuracy ensures true, reliable measurements
• Fast response time easily supports safety and cost-critical applications
• High immunity to conducted noise: tested against 10 Vrms in the range 15 Hz–100 MHz
• Continuous check of vital stored data for safety reasons
• Runtime meters provide a valuable history of the process temperature and the ambient temperature around the transmitter
• Very low temperature coefficient ensuring maximum accuracy across changing ambient conditions

Sensor Inputs

The PR 5333 programmable transmitter provides unrivalled input versatility from 2 & 3 Wire RTD or linear resistance up to 10 kΩ. Input sensor redundancy function maintains process availability and safety in the event of primary sensor failure.

Datasheet

PR Electronics Product Guide

PR 5333A Product Manual
