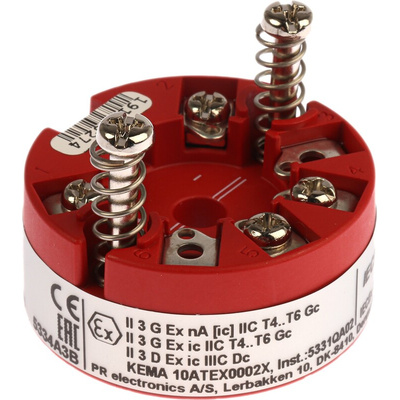

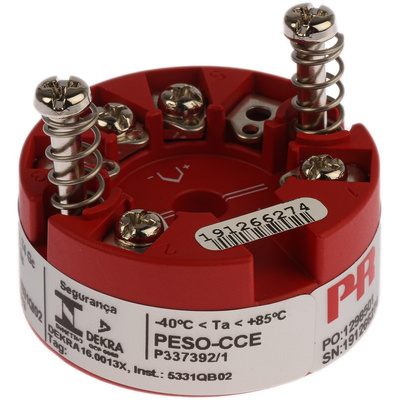

5334A3B, PR Electronics 5300 Temperature Transmitter Thermocouple, Voltage Input, 7.2 → 35 V dc, Преобразователь температуры

8275426
Номер производителя: 5334A3BПроизводитель: PR Electronics
Цена за шт.
33600.00 руб. (С НДС) *
Количество 3+
Цена 32658.00 руб.

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

5300 Series - In-Head Temperature Transmitter

PR Electronics 5300 series single input temperature transmitter offers unrivalled performance In applications making heavy demands on accuracy to convert a wide array of input types to a 4 – 20 mA output signal. The 5300 series transmitters are quickly and easily programmable to the specific application. Configuration via a standard PC and user-friendly software, PReset, available as a free download. Parameters for input, output, sensor error detection and process calibration can be configured via PReset within a few minutes.

Features and Benefits

• For DIN form B sensor head mounting
• Sensor drift detection maintains measuring point reliability
• Flexible input capability, with choice of output modes
• Superior accuracy ensures true, reliable measurements
• Fast response time easily supports safety and cost-critical applications
• High immunity to conducted noise: tested against 10 Vrms in the range 15 Hz–100 MHz
• Continuous check of vital stored data for safety reasons
• Runtime meters provide a valuable history of the process temperature and the ambient temperature around the transmitter
• Very low temperature coefficient ensuring maximum accuracy across changing ambient conditions

Sensor Inputs

The PR 5334 programmable transmitter provides unrivalled input versatility for Virtually any thermocouple and bipolar mV signals. Input sensor redundancy function maintains process availability and safety in the event of primary sensor failure.

Техническая спецификация
pdfDatasheet
pdfPR Electronics Product Guide
pdfPR 5334A3B Product Manual
Глубина:
20.2мм
Диаметр:
44 мм
Напряжение питания:
7.2 → 35 В пост. тока
Рабочая температура - максимальная:
+85°C
Рабочая температура - минимальная:
-40°C
Серия:
5300
Тип входа:
Thermocouple, Voltage
