RS PRO Thermocouple & Extension Wire Type K, 200m

PVC Flat Pair Thermocouple Cables

Stranded conductors available, either 7/0.2mm, 13/0.2mm or 23/0.2mm
Compensating types VX (KCB) & U (RCA) for types K & R/S thermocouples respectively
Insulation rating -10°C to 105°C

These PVC insulated flat pair extension and compensating cables are available for thermocouple types E, J, K, T & N. The general purpose thermocouple cables are both highly flexible and waterproof. Also available in 10m, 25m, 100m and 200m lengths.

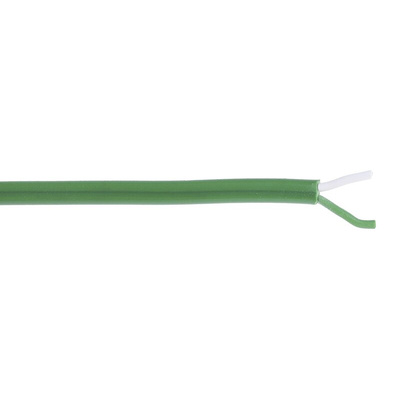

RS PRO Thermocouple & Extension Wire Type K, -10°C → +105°C 2 Core PVC Sheath 200 m

If you're constructing a temperature sensor for a thermostat, consider this Type K thermocouple and extension wire from our trusted RS PRO range. The cable will operate at a wide temperature range and is safe from -10˚C without cracking up to +105˚C without melting.

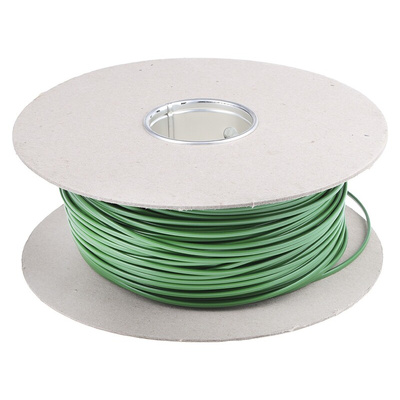

It's waterproof and pliable, being sheathed in insulating PVC. The wire is available in a 200 m spool. Inside each flat pair of conductors, you'll find seven strands of 0.2 mm.

It's certified as a safe Tolerance Class 2 thermocouple cable, conforming to the IEC-584-3 standard, and has colour-coded cores and jacket to indicate this. You won't damage equipment by electrostatic discharge as it meets the stringent ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards. What's more, the cable's compliant with RoHS, so it contains minimal levels of hazardous substances.

Features and Benefits

• Type K thermocouple and extension wire for use in temperature-sensing applications
• PVC outer jacket
• Length of 200 m

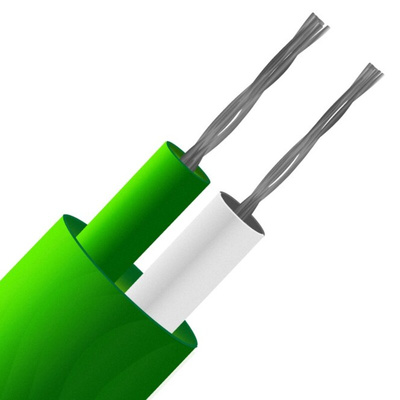

• Flat pair of cores with seven strands of 0.2 mm
• Minimum operating temperature of -10°C without cracking
• Maximum operating temperature of + 105°C without melting
• Conforms to IEC-584-3 standard as a Tolerance Class 2 thermocouple cable
• Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
