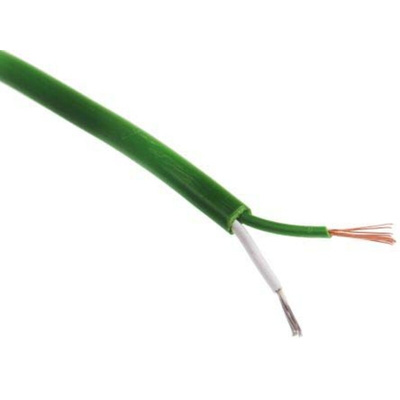

RS PRO Type K Thermocouple Wire, 50m, PVC Insulation, +105°C Max, 13/0.2mm

RS PRO Thermocouple and Extension Wire Type K, 50 m

If you need to make your own thermocouples, try this RS PRO thermocouple and extension wire. It's highly dependable, as its nickel chromium and nickel aluminium wires are suitable for use at temperatures of -10ºC to +105ºC. It also comes in a length of 50 metres, which you can cut as necessary to suit your application.


The cable insulation is made of PVC (polyvinyl chloride), so it has good mechanical strength and resistance to abrasion and weathering. This means you can install it indoors and outdoors, including in demanding industrial environments. As the product's two cores are sleeved together in a single sheath, you can easily route it without the risk of the wires being caught or tangled. This type K thermocouple is commonly used in industrial applications that require accurate temperature measurements.

Features and Benefits

• Flat pair cable shape


• 13 core strands of 0.2 mm


• PVC (polyvinyl chloride) insulation material


• Length of 50 m


• Maximum operating temperature of +105°C


• Minimum operating temperature of -10°C


• Two cores


• 13 strands


• Type K thermocouple
