RS PRO Thermocouple & Extension Wire Type K, 100m

Glassfibre Flat Pair Thermocouple Cables

Tolerance Class 2 to IEC-584
Insulation rating -60°C to 350°C (short periods up to 400°C)
Colour code (cores & jacket) to IEC-584-3

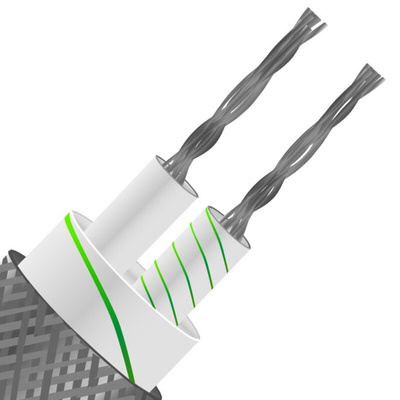

Glassfibre insulated flat pair cables in thermocouple types; K, J N or T. Types KX & TX are available in solid 1/0.3mm, JX in 7/0.2mm stranded conductors. Glassfibre insulated flat pair construction, with glassfibre jacket and silicone varnish throughout. The thermocouple cables are also available with a stainless steel overbraid for added protection.

Note

Available in different reel lengths.

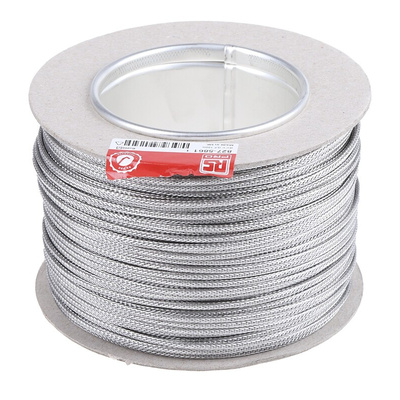

Thermocouple & Extension Wire Type K, -60°C → +350°C 2 Core Glass Fibre Sheath 100 m

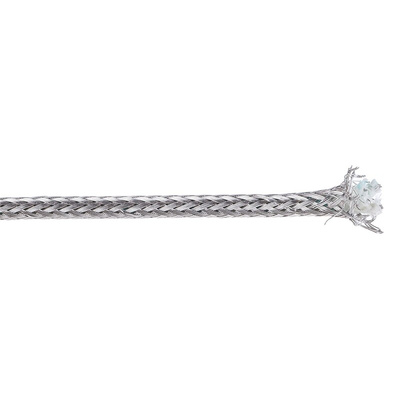

Need a thermocouple and extension wire to withstand extreme temperatures? This Type K cable from the RS PRO range will operate up to temperatures of +350˚C and down to -60˚C and is insulated with glass fibre and silicone varnish for heat resistance and flexibility. It also comes with a stainless steel overbraid for added protection against corrosion. High-temperature thermocouples are commonly used to measure temperature in industrial applications such as kilns, diesel engines and gas turbine exhausts.

The 100-m cable has two cores of seven strands, each with a cross-sectional area of 0.2 mm. For your peace of mind, it's been stringently tested to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It's also RoHS compliant so you can be sure it contains only minimal levels of hazardous substances.

Features and Benefits

• Type K thermocouple and extension wire for use in temperature-sensing applications
• Durable glass fibre insulation withstands extreme temperatures
• Minimum operating temperature of -60°C without cracking
• Maximum operating temperature of +350°C without melting
• Flat pair of 7-stranded conductors
• Cross-sectional area of 0.2 mm
• Length of 100 m
• Conforms to IEC-584 standard as a tolerance class 2 thermocouple cable
• Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
