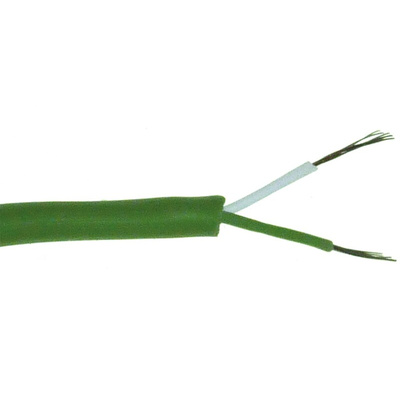

RS PRO Type K Thermocouple Wire, 50m, Silicone Rubber Insulation, +200°C Max, 7/0.2mm

RS PRO Thermocouple & Extension Wire Type K, -40°C – +200°C 2 Core Silicone Rubber Sheath 50 m

Looking for a durable thermocouple wire to build a temperature sensor? This cable from the RS PRO range is insulated with a silicone rubber outer jacket, making it highly flexible and resistant to fluids such as oils and acids.

The twisted thermocouple and extension wire can be used down to -40˚C and up to +200˚C, although it's not suitable for direct use in high-pressure steam. It's available in lengths of 50 m.

Each twisted pair of these seven-stranded conductors has a cross-sectional area of 0.2 mm. The cable's colour-coded cores and jacket indicate that it's certified as a safe Tolerance Class 2 thermocouple cable and conforms to the IEC-584 standard. What's more, the cable has been stringently tested to ensure it won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007). It's also RoHS certified, so you can be sure it contains only minimal levels of hazardous substances.

Features and Benefits

• Two-core type K twisted thermocouple and extension wire for use in temperature-sensing applications
• Seven strands, sized 0.2 mm
• Length of 50 m
• Silicone rubber outer jacket
• Minimum operating temperature of -40°C without cracking
• Maximum operating temperature of + 200°C without melting
• Not suitable for direct use in high-pressure steam
• Conforms to IEC-584 standard as a Tolerance Class 2 thermocouple cable
• Compliant with ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 (electrostatic discharge) and RoHS (hazardous substances)

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
