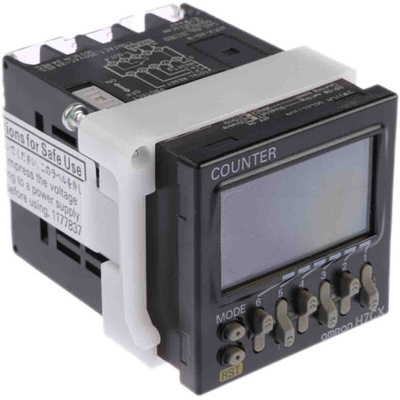

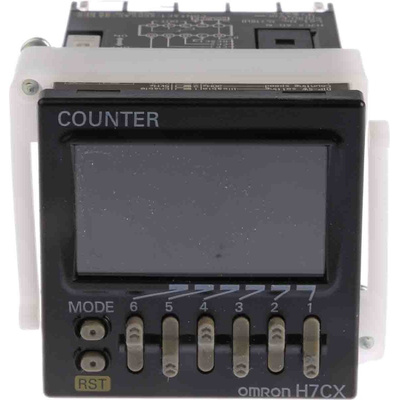

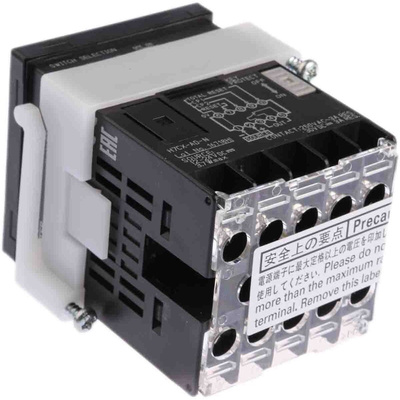

H7CX-AD-N DC12-24, Omron H7CX Counter, 6 Digit, 10kHz, 12 → 24 V dc, Счетчик

Omron Digital Counter

The Omron H7CX series digital counter is a 6-digit LCD display, panel mount, single preset multifunction device. This counter has voltage input and SPDT contact output device. It has voltage rating ranges between 12VDC and 24VDC. The 3-colour display value red, green or orange (except H7CX-A11 models) increases character height and display segments. It supports up, down, command, individual, quadrature operating modes. This counter has a maximum count frequency of 10KHz.

Features and Benefits

Simple operation using UP/DOWN keys for digits
Twin counter mode
Automatic or manual reset method
Reliable- Setting upper limit restricts the set time and helps to prevent incorrect settings
Service life notification- The number of times that the control output turns ON is counted and an alarm is displayed when a preset count is exceeded
Measurement ranges between -99999 and 999999
Front dimension is 48mm x 48mm
Plug-in screw terminals
11-pin socket connection type
Operating temperature ranges between -10°C and 55°C

Applications

Industrial counting applications
Control and monitoring systems
Manufacturing assembly lines

Certifications

IP66 rated
