MY4 DC100/110(S), Omron Plug In Power Relay, 110V dc Coil, 5A Switching Current, 4PDT, Реле

MY4 Series

Reliable, economical
Use PCB mounting socket 196-6153
Use DIN rail mounting socket 196-6147
Contact material: Au clad; Ag alloy
Operating temperature range: -55 to +70°C
Switching current 3A
Switching voltage 250Vac; 30Vdc
Dimensions: H36mm x W21.5mm x D28mm

Approvals

UL recognised component for Canada and US, VDE

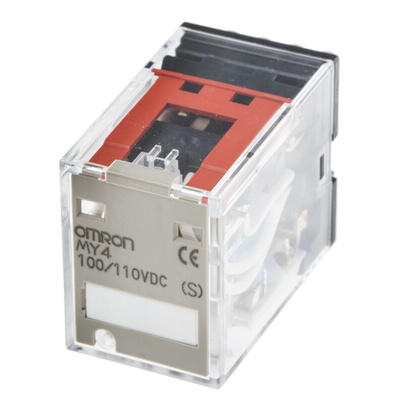

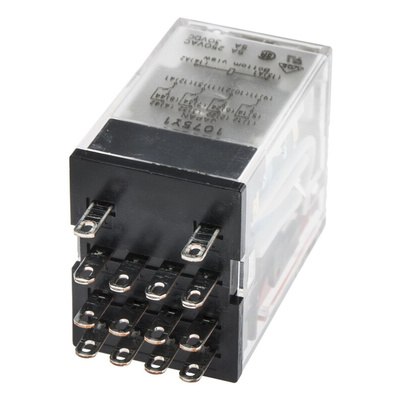

Omron MY4 Series Power Relay, 110VDC Coil Voltage, 4PDT Contact Configuration - MY4 DC100/110(S)

This Omron power relay, high power, plug in model is a versatile component designed for use in automation, electronics, electrical, and mechanical industries. With a coil voltage of 110V DC and a switching current of 5A, this relay offers reliable performance in various applications.

Features & Benefits

• Gold plated contacts relay ensures excellent conductivity and durability
• 4PDT contacts configuration provides enhanced versatility and flexibility
• Plug in mount type allows for easy installation and maintenance
• High power relay with a maximum switching power of 150W (DC) and 1.25kVA (AC)
• Omron MY4 series relay offers high quality performance and reliability.

Applications

• Ideal for use in control panels for automation applications
• Suitable for power distribution systems in electronics industry
• Used in relay logic circuits for electrical control systems
• Perfect for motor control applications in the mechanical industry

Can it handle high power applications?

Yes, the Omron power relay is designed for high-power applications with a maximum switching power of 150W (DC) and 1.25kVA (AC).

Will it fit into standard control panels?

Yes, the plug-in mounting type of this relay makes it easy to install in standard control panels.

Is it suitable for motor control applications?

Yes, this relay is perfect for motor control applications in the mechanical industry.

Can I rely on the reliability of the gold-plated contact relay?

Yes, the gold-plated contact relay provides excellent conductivity and durability for reliable performance.

MY(S) Datasheet

Brochure - Relay Sockets with Push-In Plus Technology
