RS PRO Polypropylene Bag Filter, G4 Grade, 8 MERV Rating, 592 x 492 x 500mm, Фильтр

RS PRO Bag Filter, Polypropylene Media, G4 Grade, 592 x 492 x 500 mm 8

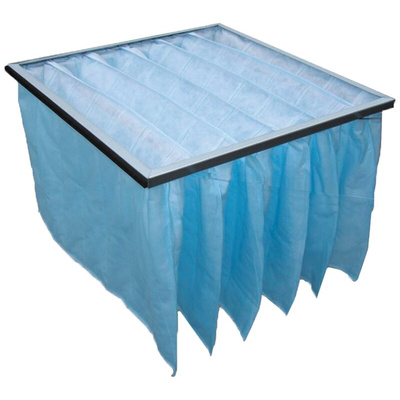

This RS PRO bag filter uses a non-toxic polypropylene (PP) medium to catch any harmful particles in the air as they enter your ventilation system. Its five deep pockets allow air to flow freely while providing more surface space to capture dust. Its flexible synthetic PP material is easy to install in compact air vents as it fits across tight grooves without disturbing filtration.
As a G4 grade filter, it's designed to stop coarse dust that may drift through indoor plumbing and ventilation systems. The product's pre-filter layer separates large particles and acts as an extra step in maximising your system’s performance.
The filter is mounted to a galvanised steel casing that keeps it securely in place. Its leak-free welded seams and waterproof material mean it withstands damp atmospheres and still provides high-efficiency filtration.

Features and Benefits

• Header size of 20 mm
• Actual dimensions of 592 (H) x 492 (W) x 500 (D) mm
• Nominal dimensions of 24 (H) x 20 (W) x 20 (D) in
• Galvanised steel case material
• Blue colour
• G4 filter grade
• Filter merv rating of 8
• Bag filter type
• Final pressure drop of 50 Pa
• Initial pressure drop of 40 Pa
• Maximum air flow of 71.51 m≥/h
• Polypropylene media material

RS Pro Datasheet
