RS PRO Polypropylene Bag Filter, F7 Grade, 13 MERV Rating, 592 x 592 x 350mm, Фильтр

RS PRO Bag Filter

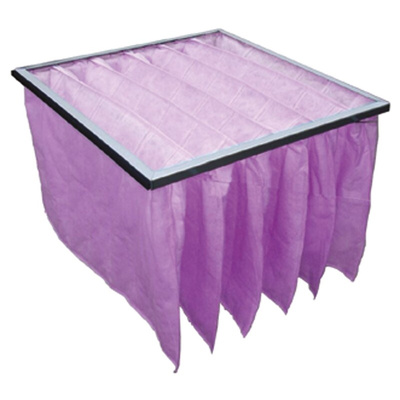

The RS PRO Ecoflow80 F7 grade pink bag filter is manufactured by mounting the 100% polypropylene synthetic electrostatically charged media into a galvanised steel header frame. It is hydrophobic, which ensures great performance in damp atmospheres. This bag is widely used in applications where low-cost fine filtration is required.

Features and Benefits

Triple filtration layered
Totally non-toxic and non-irritant
The frame has a rolled safety edge which prevents damage to the media and is safe to install
Extra build-in pre-filter layer provides extended filter life
Ultrasonically welded seams provide leak free pockets
Available in most sizes and pocket configurations
AVerage efficiency (measured on electrostatically charged media) at 0.4 micron* is 80%
Minimum velocity required is 1.2m/s
Actual Dimensions are 592mm x 592mm x 350mm
The filter MERV rating is 13
Number of pockets are 8
Maximum airflow is 58.37m³/h
Initial pressure drop is 105Pa
Final pressure drop is 350Pa
\t
Header size is 20mm

Applications

Government buildings
Hospitals
Theatres
Spray booths
Computer rooms
Offices

RS PRO Datasheet
