9134-4500PL, 3M 9100 Series Straight Through Hole Mount PCB Socket, 34-Contact, 2-Row, 2.54mm Pitch, Solder Termination

9000 Series Polarized

The 3M 9100 series of Polarized Boardmount Sockets will provide high reliability and durability. All models will range from 20 positions to 50 positions.

Board retention feature
Mates with low profile shrouded headers
Military dual polarization
2.54mm Pitch Size

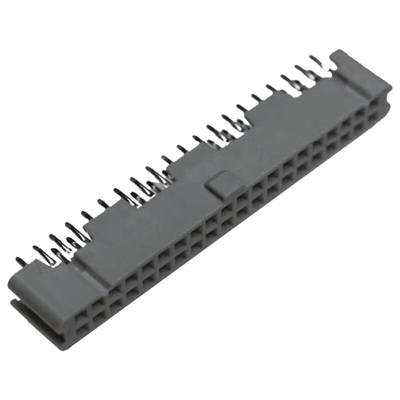

3M PCB Socket, Straight, 34 Ways - 9100 Series - 9134-4500PL

Securely connect two printed circuit boards using this socket from 3M. It attaches to your boards using a simple through-hole mounting method, so setting up is quick. The socket holes have a standard pitch of 2.54mm to make them compatible with male 34-way headers. Designed to mate with low-profile headers and built with a compact length of 47.7mm and a height of 9mm, this is a space-saving alternative to wire-harness connections.

• Dual polarisation slots for use in military applications
• Conductive copper contacts for circuit reliability
• Centre bump on housing to prevent incorrect mating

Applications

• Defence industry
• Computing and communications
• Electronics assembly

What's the PCB socket body made from?

The body of this PCB socket is made from glass-filled polyester to make it strong and durable. This material is also heat-resistant and flame-retardant to improve the safety of your electrical equipment.
