4610-6000, 3M 10-Way IDC Connector Plug for Cable Mount, 2-Row, Разъем

3M 2.54 x 2.54mm 4600 Series Cable Mount IDC Plugs

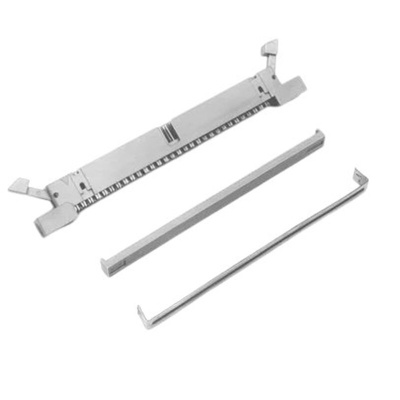

2.54 x 2.54mm 4600 series cable mount IDC plugs for use with flat ribbon cable or discrete wire with a wire size range of 26 and 28 AWG (solid and stranded). These 4600 series 2.54mm cable mount IDC plug connectors have a shrouded design for pin protection and open end covers that enable daisy chaining and bussing. Various polarization options are available for these 2.54mm 4600 series IDC ribbon cable plugs, please refer to datasheet on our website for details.
Part numbers 46XX-XXX0 have slotted mounting flanges.
Part numbers 46XX-X2X0 are supplied with short ejector latches
Part numbers 46XX-X3X0 are supplied withlong ejector latches
Ejector latches are also available separately (non-flanged versions only) see stock nos. 483-4431 (short) and 483-4447 (long)
For polarising key see stock number 629-0029
Strain reliefs are also available see stock number 838-1492 typically.

Note

See 3M IDC ribbon cable – typically stock no.120-8413. Dedicated tooling is also available – see stock no. 120-6962 and range.

3M IDC Connector, 2.54mm Pitch, 1A Current Rating - 4600 Series - 4610-6000

Put your electrical appliances on talking terms with this IDC connector from 3M. To boost your workflow, there are ten contacts arranged along two rows, supporting up to 20 connections. A straight body orientation means the unit fits neatly into your system. Thanks to the IDC termination method, installation's a cinch and there's no need for cable stripping. Gold and nickel contact plating ensures connections are strong and your equipment won't receive mixed messages.

Features & Benefits

• UL 94 V-0 rating means burning subsides inside 10 seconds in the event of fire
• Copper alloy contacts offer high electrical conductivity for effective signal transfer
• 2.54mm pitch provides plenty of room for integrating wiring into your setup

Applications

• Computer drives
• SSDs and smartphones

Can I use this component in harsh conditions?

Yes, this device has a wide operating temperature range between -55°C and +105°C, so it's suitable for use in demanding environments.

Datasheet
