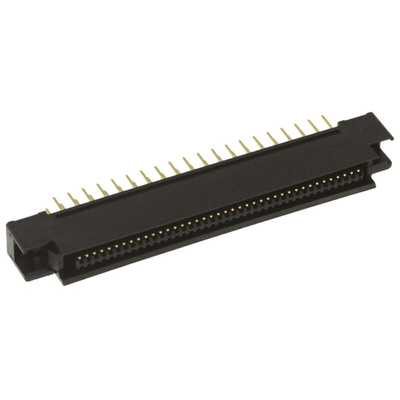

P50E-080P1-S1-EA, 3M P50E Series Straight Through Hole PCB Header, 80 Contact(s), 1.27mm Pitch, 2 Row(s), Shrouded

3M MIL IDC Plugs & Sockets

The 3M series of MIL IDC Plugs and Sockets are designed to be extremely durable and of the highest quality. All models conform to the MIL specifications and would be intended for ribbon cable applications.

Pitch size: 1.27mm

3M PCB Header, 1.27mm Pitch, Gold Contact Plating - P50E Series - P50E-080P1-S1-EA

Attach wires securely to your circuit board using this PCB header from 3M. It has 80 pins in two rows with a pitch of 1.27mm, making it suitable for connecting ribbon cables. The pins are shrouded to prevent bending and ensure reliable wire connections. There's a simple mechanism for latching and ejecting the header, so it's easy to use. Made from glass-filled nylon, the component body is mechanically strong and durable.

• Conductive copper-alloy contacts are plated in gold for corrosion resistance
• Wide operating temperature of -55ºC to +85ºC for use in demanding environments
• Flame-retardant material means vertical burning stops in ten seconds
• Side of header is marked with a triangle to ensure correct polarity

Applications

• Military and defence equipment
• Computers and peripherals
• Electronics

What connection method does this PCB header use?

The wire terminals are suitable for soldering and the header is connected to the board by through-hole mounting.
