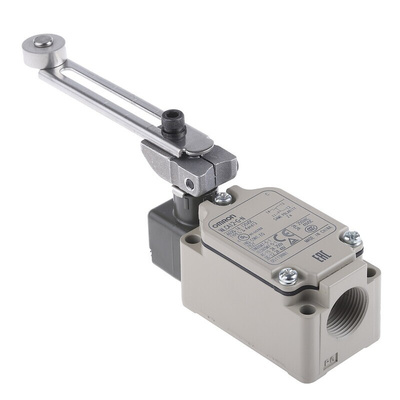

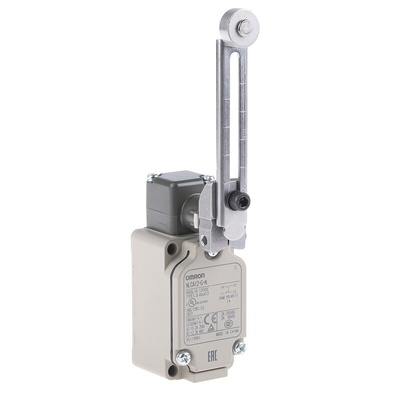

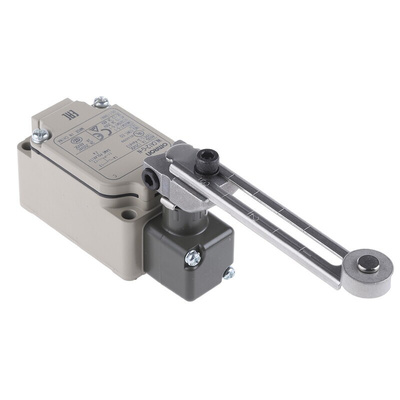

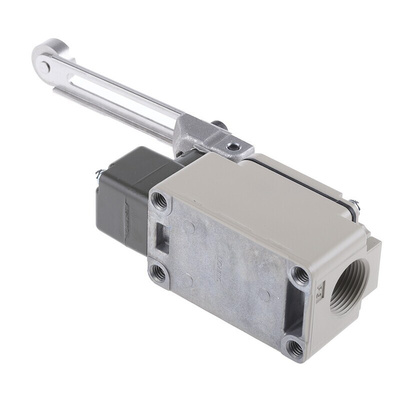

WL-CA12-GN, Omron WL Series Adjustable Roller Lever Limit Switch, NO/NC, IP67, DPST, Metal Housing, 250V ac Max, 2A Max

WL Series General Purpose Limit Switch

Oil-tight, waterproof and dustproof cast aluminium body construction to IP67
Two sets of snap action contacts: N/C and N/O
Contact rating: 10A (I_th250Vac) max. 600ac, 250Vdc
Four position turret head
Operating temperature range: - 10° to +80°C
Set position indicator plate for easy maintenance
Conduit entry PG13.5

Approvals

UL, CSA

OMRON Limit Switch, 250V Rated Insulation Voltage, 2.2kV AC Dielectric Strength - WL Series - WL-CA12-GN

For precise object positioning in your industrial equipment, put this limit switch from OMRON on your shopping list. It detects objects by making contact and stops the machine conveyor when they get to the right spot, enhancing automated operation. This unit's lever position is adjustable, so you can fine-tune it to fit your design needs. A mechanical life of 15 million operations means it goes the distance. The device handles up to 2.2kV of impulse voltage, making it safe for use in volatile settings.

Features & Benefits

• Operating temperature range between -10°C and +80°C means it's dependable in demanding conditions
• Slimline dimensions of 94.1 (L) x 67 (D) x 40mm (W) so it saves space in your setup
• Light weight of 275g makes it easy to handle during installation
• Compatible with AC and DC networks for versatility
• Metal body holds its own against impact and abrasion

Applications

• Measurement and instrumentation
• Lifts and escalators
• Marine engineering

What tool do I need to install this limit switch?

To assemble this device, all you need is a simple screwdriver for securing the fasteners.
