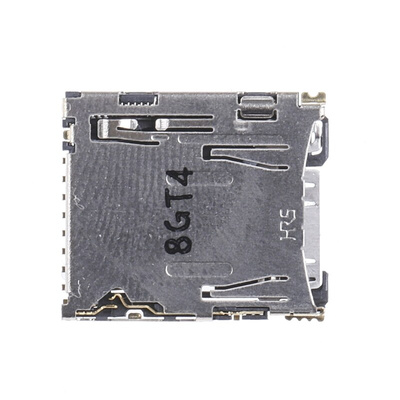

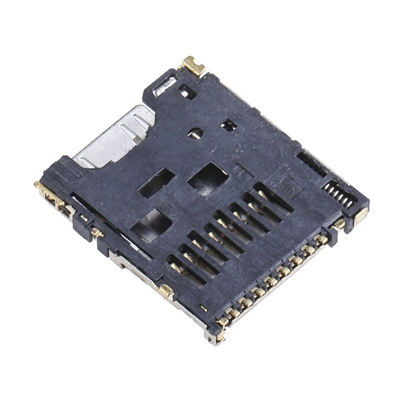

Hirose DM3 Series microSD Card Connectors
DM3 series SMT mounting microSD card connectors with small external dimensions and a strong rigid structure. These DM3 series microSD card connectors have reverse card insertion protection and a N/O card detection switch. The termination leads of these DM3 series microSD card connectors are accessible so they can be inspected and re-worked.
• Small external dimensions
• Strong, rigid construction
• Reverse card insertion protection
• 4 connection points of the metal cover to the PCB secure connection of the ground circuit providing EMI protection
• Normally Open card detection switch
• Black LCP insulator, UL94V-0
Note
DM3 AT* part numbers are Push-Push with an ejection mechanism and are Top board mounting (standard)
DM3 BT* part numbers are Push-Push with an ejection mechanism and are Bottom board mounting (reverse)
DM3 C & CS* part numbers are Hinge, Push-Pull with no ejection mechanism and are Top board mounting (standard)
DM3 D* part numbers are Push-Pull without an ejection mechanism and are Top board mounting (standard)
DM3xxx-SF-xxx part numbers have standard right angle SMT terminals
DM3xxx-DSF-xxx part numbers have reverse right angle SMT terminals
Memory Card Connectors
Техническая спецификация
Hirose DM3 Series MicroSD Card ConnectorDM3 microSD memory card connector - drawingDM3 microSD memory card connector - drawing| Самовывоз со склада поставщика в Екатеринбурге | Забираете сами или вызываете курьера |
