1172C SL005, Alpha Wire Alpha Essentials Control Cable, 2 Cores, 0.35 mm², Unscreened, 30m, Grey PVC Sheath, 22 AWG, Кабель

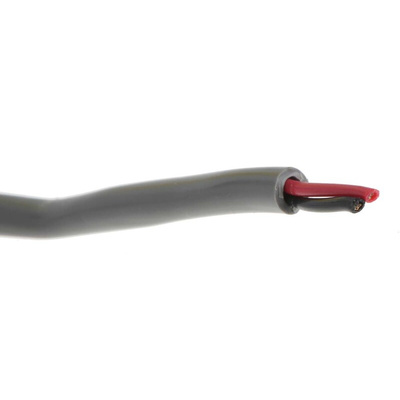

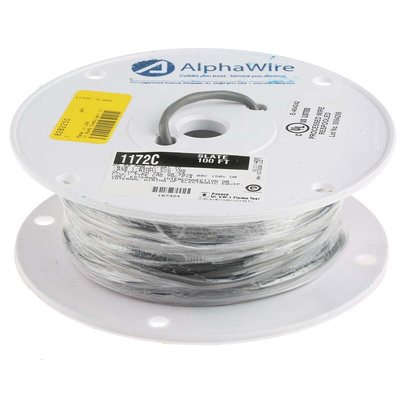

Belden Alpha Wire Grey Control Cable, 22AWG, 30m Length - Alpha Essentials Series - 1172C SL005

Use this robust control cable from Belden's Alpha Wire range for analogue and digital signal transmission in your control systems. Its two conductors are made of highly conductive tinned copper to deliver a secure and effective connection. The flame-retardant outer jacket helps keep your workplace safe by preventing the spread of flames in the event of a fire. As this cable is classified as LSZH (low-smoke, zero-halogen), it's environmentally friendly and doesn't emit toxic fumes in a fire. You'll find wires like this one commonly used in commercial audio systems.

Features & Benefits

• Minimum bend radius of 10 times the cable diameter for easy installation in tight spaces and around corners
• Includes drain wire that carries excess voltage to the ground for enhanced electrical safety
• Rating of 300V means it's suitable for low-voltage applications
• Ample cable length of 30m for use on numerous jobs

Applications

• Mining industry
• Robotics and automation equipment
• Construction sites

What's the current rating of this cable?

The cable has a current rating of 1.5A per conductor. This means that it's energy-efficient and won't overheat.
