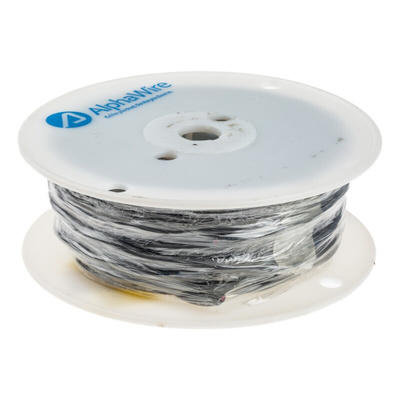

1895C SL005, Alpha Wire Alpha Essentials Control Cable, 2 Cores, 0.56 mm², Unscreened, 30m, Grey PVC Sheath, 20 AWG, Кабель

Belden Alpha Wire Grey Control Cable, 30m Length, 20 AWG - Alpha Essentials Series - 1895C SL005

To support reliable signal transmission in your industrial system, choose this control cable from Belden's Alpha Wire range. It can withstand harsh working environments due to its durable PVC sheath, which protects against heat, chemical damage and abrasion. The tinned copper conductors are corrosion-resistant, so deliver a long service life and provide effective conductivity to offer consistent signal transmission. This flexible wire has two stranded conductors for versatility. It has a cross-sectional area of just 0.56 mm², so it's practical for use in tight spaces.

Features & Benefits

• Wide operating temperature range between -20°C to +80°C for use in demanding environments
• 30m length can be cut to suit individual needs
• 300V voltage rating makes it suitable for portable tools, equipment and appliances

Applications

• Industrial control and instrumentation
• Alarm and security systems
• Industrial networking systems

Is this control cable flexible?

Yes. This control cable has a minimum bend radius of 10 times the diameter, meaning the cable is flexible enough to create a loop without putting strain on the PVC sheath or losing performance.
