1214C SL005, Alpha Wire Alpha Essentials Control Cable, 4 Cores, 0.23 mm², Screened, 30m, Grey PVC Sheath, 24 AWG, Кабель

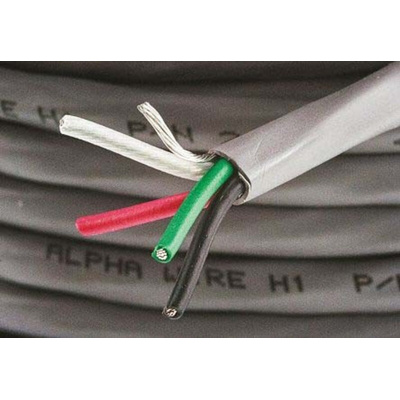

Alpha Wire Control Cable, 4 Cores, 0.23 mm², 30m, Grey PVC Sheath

This is a multi-conductor cable which offers a comprehensive collection of application and installation options so that you can easily select it to meet your most demanding needs. They are also known as multi-core cables, control flex and control flexible cables.

Features and Benefits:

•\tIt is produced with Alum/Mylar Tape, 25% Overlap shield referring to extra protection and strength of the cable
•\tIt has PVC insulation /jacketing materials making it fire resistant and environmentally friendly
•\tIt includes copper conductors of 24 (7/32) AWG preventing corrosion
•\tIt offers a temperature range of -20˚C to 80˚C ensuring flexibility and safety of use
•\tIt has a resilience bend radius which is 10x the cable diameter

Applications:

•\tAudio systems: speakers, microphones, intercoms
•\tInstrumentation systems
•\tBusiness machines including computer peripherals
•\tUsed for mining equipment, crane control
•\tSecurity systems such as alarms, cameras, sensors

What are the cables electrical properties?
The voltage rating varies to 300 VRMS also, the conductor DCR is 26 Ω/1000ft @20°C, Nominal.

What regulations and standards are met through this cable?
REACH Regulation (EC 1907/2006) meaning this product does not contain Substances of Very High Concern (SVHC). Also, it complies with European Directive 2011/65/EU (RoHS Directive).
