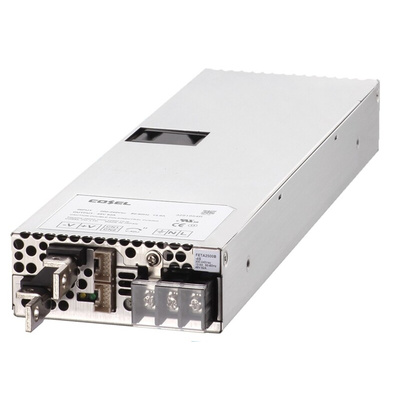

Cosel Switching Power Supply, FETA2500B-36, 36V dc, 55A, 1.9kW, 1 Output, 170 → 264V ac Input Voltage, Источник питания

Cosel 1980-2500W, FETA Series

The FETA series power supplies are a 1U, low profile height, rack mount power supply with a high efficiency of up to 91%. Up to 10 units can be operated in parallel. The units have additional functions such as LED indicator, alarm signal and remote on/off.

Features:
High power density (1.76W/cm3 FETA2500B-48)
Low profile (41mm, 1.61 inch = meet to 1U height)
High efficiency (92.5% type FETA2500B-48, 230 Vac in, 50% load)
Harmonic attenuator (Complies with IEC61000-3-2 class A)
Complies with SEMI F47
Parallel Operation /Parallel Redundancy Operation
Alarm signals, Remote ON/OFF and other functions
Input voltage: 170 to 264 Vac
Operating temperature: -10 to 70 °C
Cooling method: Forced cooling (internal fan)

Note

5 year warranty

Standards

UL60950-1, C-UL (CSA60950-1), EN60950-1
