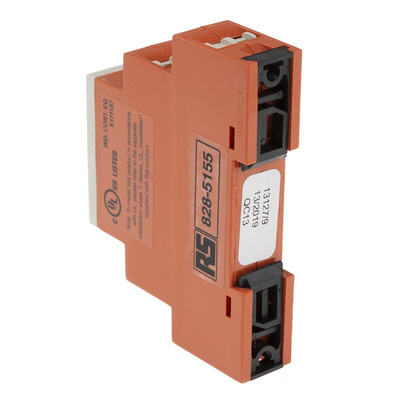

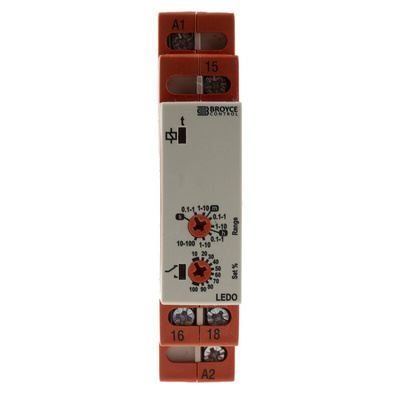

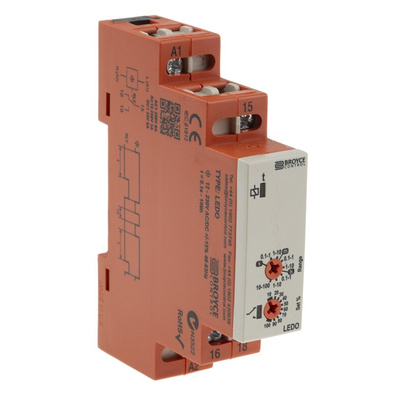

LEDO 12-230V AC/DC, Broyce Control DIN Rail Mount Timer Relay, 12 → 230V ac/dc, 1-Contact, 0.1 s → 100h, 1-Function, SPDT

Broyce Control Single-function Timer relay

The Broyce Control single-function timer relay is solid-state, compact equipment with high precision and a wide range of programming features. It performs the function of providing ON operate delay with instantaneous contact in the range of 0.1 seconds to 100 hours. This timer has intuitive programming, which makes it easy to use and quick to configure. For selecting the time delay range, there are two selectable rotary switches on the front of the unit. It is affordable. Its high performance makes it ideal for a wide range of applications in process control environments.

Features and Benefits

7 selectable time ranges in the range of 0.1s to 100h like 0.1s to 1s, 0.1min to 1min, 0.1h to 1h, 1s to 10s, 1min to 10min, 1h to 10h and 10h to 100h
1 SPDT configuration relay output of 8A
Supply voltage range is 12VAC to 230VAC and 12VDC to 230VDC
17.5mm housing
Mounting type is DIN rail
Fine adjustment of the selected time range
Green LED indication for supply and timing status
Red LED indication for relay status

Applications

Textiles
Chemical industry
Mining
Irrigation
Raw material handling
Food and beverages
Industrial process control

Certifications

UL approved
CE certified
C-tick certified
EN 61000-6-2
EN 61000-4-3
EN 61000-6-4
IEC 61812
cULus approved
ISO 9001
IP20 rated (Terminal protection)
