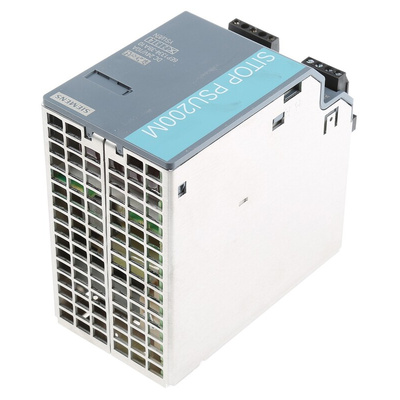

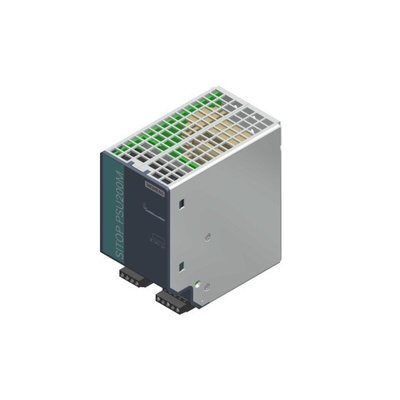

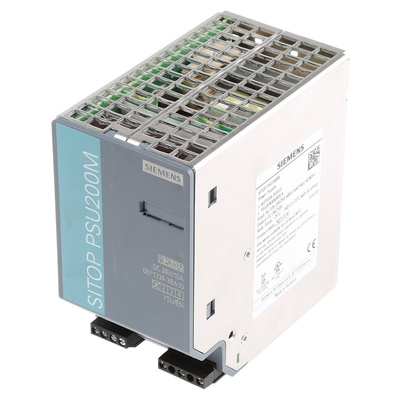

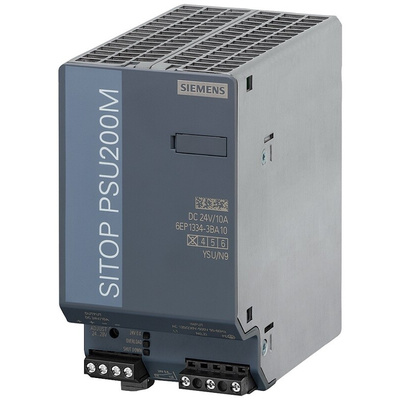

6EP1334-3BA10, Siemens SITOP PSU200M Switch Mode DIN Rail Power Supply 85 → 264V ac Input Voltage, 24V dc Output Voltage, 10A, Блок питания

Siemens DIN Rail Power Supply Unit

The Siemens SITOP PSU200M series single output switch-mode DIN rail power supply has an output current rating of 10A at 24VDC. It has a universal single and dual-phase input voltage ranging between 85VAC and 264VAC/ 176VAC and 550VAC with adjustable output voltage for compensating voltage drops. The ultra-wide-range ensures high reliability even in the case of large voltage fluctuations. The Power Boost function supplies up to three times the nominal current over short durations. If overload occurs, there is a choice between constant current with automatic restart or latching disconnection. It has a high degree of efficiency minimizes energy consumption and heat generation in the control cabinet and the compact metal enclosure also saves space. Its adjustable output voltage ranging between 24VDC and 28.8VDC.
Why use a DIN Rail power supply?
The flexibility of DIN Rail mounting systems enables quicker installation time as all devices can simply snap onto the metal rails. Power supplies can be easily organised on DIN Rails within enclosed wall boxes or in areas where there is limited space. Similar devices can be mounted next to each other reducing the amount of cabling required. Most power supplies are convection cooled so no cooling fans are needed.
DIN-Rail AC to DC power supplies is widely used in many automation, instrumentation and industrial applications. They are used to power a wide variety of DC operated devices including sensors, motors, actuators, solenoids, relays and many more.
Points to consider when buying a DIN Rail power supply
DIN Rail size – There are three common types of DIN Rails. Top Hat, G section and C section. Most have a depth of 7.5 mm or 15 mm. It is wise to check that your power supply is compatible with your DIN Rail. Protection types – It is important to choose a power supply that is protected against either short circuit, overload, over-temperature or overvoltage. Some power supplies also offer a hiccup mode which will allow the PSU to resume operation once the fault is cleared.
The fixed or adjustable output voltage or current – In test systems, it is often convenient to have adjustable DC voltage however in other applications a fixed DC supply may be essential.
Cabling and wiring – The input/output lines to and from the power supply should be as short as possible with a large cross-sectional area to help minimise noise and heat.
Efficiency – Choose a power supply that has high-efficiency to minimise the amount of power dissipation, especially if the system relies on convection cooling.
Input voltage range – If the DIN Rail power supply you are buying is to be used in Europe and North America as well as the UK then a universal AC input range of 80 V ac to 264 V ac is required.
Standards – If the power supply is to be used in the USA for controlling electric motors then it will need to comply with Standard UL508, the safety standard for industrial control equipment.

Features and Benefits

Compact design
Highly efficient up to 91%
low energy consumption and minimal heat generation
Operating state on 3 LEDs
Operation temperature ranging between 25°C and 70°C
Power rating is 240W
Ripple factor and noise is less than 50mV
Screw terminal connection
Signalling contact for easy integration in the plant monitoring system
Symmetrical load distribution can be selected for parallel operation

Applications

Buffer modules
Redundancy modules
Selectivity modules
Uninterrupted power supplies

Certifications

ATEX certified
cCSAus
cULus
GL
IP20 rated
