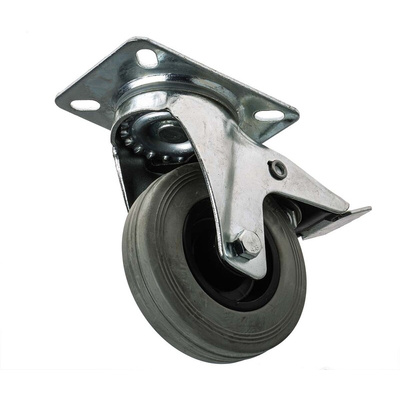

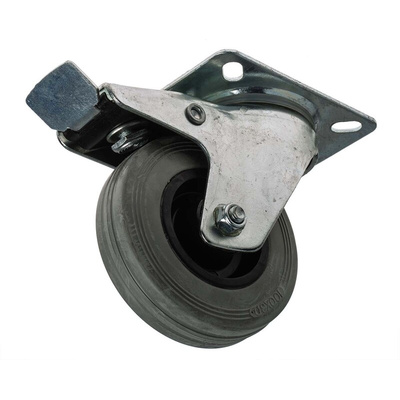

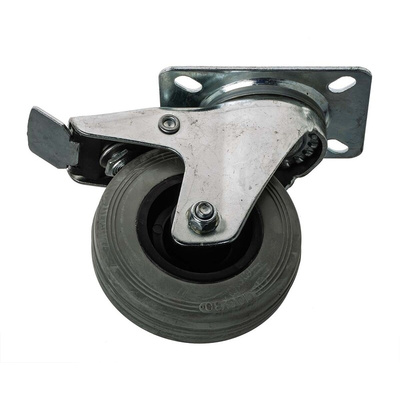

RS PRO Braked Swivel Castor Wheel, 70kg Capacity, 100mm Wheel

RS PRO Braked Swivel Castor, 70 kg Load Capacity, 100 mm Wheel Diameter

Move equipment quickly and safely around offices, warehouses or other environments with the help of these handy swivel castors from RS PRO. These general-purpose castors have a wheel diameter of 100 mm and can carry up to 70 kg.

The castors have a brake for safety and rubber tyres to protect your floor. Offering maximum mobility, they're able to rotate a full 360°. The wheels are fitted with roller hub bearings, which offer a higher load capacity than plain bore bearings.

Installing the swivel castors is easy using the rectangular plate mount supplied. This comes with four 8-mm fixing holes.

As part of the reliable RS PRO range, this product has been tested to ensure it meets our strict standards for safety and quality. Swivel castors such as these are typically used in office and retail settings, as well as in light-duty industrial and medical applications.

Features and Benefits

• Swivel castor
• Load capacity of 70 kg
• Wheel diameter of 100 mm
• Overall height of 128 mm
• Wheel width of 24 mm
• Plate mounting type
• Fixing plate dimensions of 102 mm x 84 mm
• Fixing centres of 80 mm x 60 mm
• Rubber tyres
• Braked swivel rotation
brake included
• Light duty
• Includes top plate fitting
• Four fixing holes of 8 mm
• Roller hub bearings
• For general purpose application
