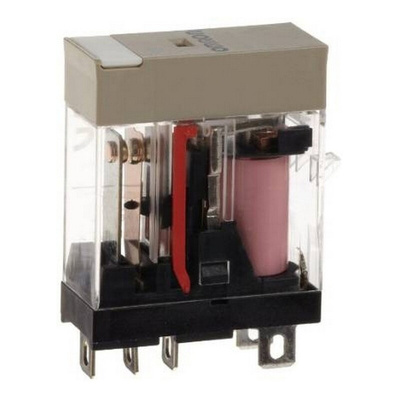

G2R-1-S-AC24(S), Omron Plug In Power Relay, SPDT, Реле

G2R Series

General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm

Approvals

UL508; CSA22.2; EN 61810-1; SEV; SEMKO

G2R-1-S-AC24(S) – General Purpose Relay / Solid State Relay.

The Omron G2RS Series of relays cover wide ranging interface applications including a range of compatible sockets, crossbars, mounting tracks, end plates and spacers.
• Model with an (S) suffix = Mechanical operation indicator and nameplate.
• General purpose Solid State relay applications.
• Unsealed
• 1 Pole
• S = Plug-in terminals / Push-in plus.
• Coil disconnection self-diagnostic function (LED)
• Colour coded coils. Red (ac) Blue (dc). Easy identification.
• Rated coil voltage 24 V ac.
• SPDT Single contacts.
• Slim, space saving, robust. 16 mm width including sockets.
• Reduced wiring up to 60%.
• High switching power. 1-Pole 10 A.
• Environmentally friendly cadmium free contacts.
• reliable
• There is no LED Indicator test button with this model.
• The G2RS Relays enhanced features, flexibility complete with user friendly installation are an excellent choice of solid state relay.
When ordering this part ensure you add the coil voltage required and (S) for the mechanical operation.

G2R-1-S-AC24(S) Solid State Relay / Industrial Relay Added Features.

Relay Contact material is Ag Alloy.
• Rated current 50 Hz = 43.2 mA. 60 Hz = 37.4 mA.
• Coil resistance of 253 Ω.
• Coil Inductance (H) Armature OFF 0.81, Armature ON 1.55.
• Power consumption 0.9 V a 60 Hz.
• 1 Pole rated load 10 A at 250 V ac, 10 A at 30 V dc. (resistive load).
• 1 Pole rated load 7.5 A at 250 V ac, 5 A at 30 V dc (inductive load).
• Rated carry current and Max switching current 10 A.
• Max switching voltage 440 V ac, 125 V dc.
• Contact resistance 100 mΩ max.
• Destruction vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
• Malfunction vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
• Operate set time 15 ms max.
• Industrial PINS with higher conductivity, less temperature increase.
• Balanced performance.
• Transparent housing.
• Relays have CE marking.
• Weight of the relay is 20 g approx.

Omron Relay Applications.

• Plastic injection machines.
• Shrink wrap machines.
• Vertical and horizontal packaging machines.
• Safety systems.
• Heat tunnels.
• Robotic systems.
• Packaging systems.

Solid State Relay Suitable Markets.

• Automotive.
• Food and beverage.
• Packaging.
• Semiconductor.
• Waste water treatment plants.
• Security detention.
• Energy.

Suitable Connecting Sockets for the General Purpose relay/ Solid State Relay.

Part P2RF-05-PU, Stock number 1113066, Push in Plus terminal block. Track surface mounting socket.

Suitable Mounting Track, Track Connecting Socket for Solid State Relay.

• Mounting track (L) 50 cm x (T) 7.3 mm, PFP-50N, Stock number 8278400.
• Mounting track (L) 1 m x (T) 7.3 mm, PFP-100N, Stock number 8278403.
• Mounting track (L) 1 m x (T) 16 mm, PFP-100N2, Stock number 8278406.

Solid State Relay Suitable End Plate.

PFP-M, Stock number 8278419.
• When DIN Rail mounting you must use an end plate.

Solid State Relay Suitable Spacer.

• PFP-S, Stock number 8278412.
