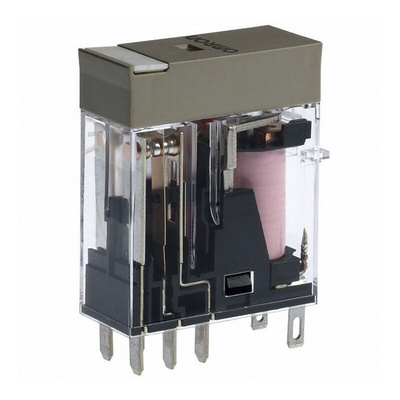

G2R-2-S AC24(S), Omron Plug In Power Relay, DPDT, Реле

G2R Series

General purpose PCB power relay used in various domestic and commercial applications
8mm creepage/clearance
H25.5 x W13 x D29 mm

Approvals

UL508; CSA22.2; EN 61810-1; SEV; SEMKO

G2R-2-S-AC24(S) – General Purpose Relay / Solid State Relay.

The Omron G2RS Series of relays cover wide ranging interface applications including a range of compatible sockets, crossbars, mounting tracks, end plates and spacers.
•\tModel with an (S) suffix = Mechanical operation indicator and nameplate.
•\tGeneral purpose Solid State relay applications.
•\tUnsealed
•\t2 Pole
•\tS = Plug-in terminals / Push-in plus.
•\tColour coded coils. Red (ac) Blue (dc). Easy identification.
•\tRated coil voltage 24 V ac.
•\tDPDT Single contacts.
•\tSlim, space saving, robust. 16 mm width including sockets.
•\tReduced wiring up to 60%.
•\tHigh switching power. (1-Pole 10 A).
•\tEnvironmentally friendly cadmium free contacts.
•\tReliable
•\tThere is no LED Indicator test button with this model.
•\tThe G2RS Relays enhanced features, flexibility complete with user friendly installation are an excellent choice of solid state relay.
When ordering this part ensure you add the coil voltage required and (S) for the mechanical operation.

G2R-2-S-AC24(S) Solid State Relay / Industrial Relay Added Features.

•\tRelay Contact material is Ag Alloy
•\tRated current 50 Hz 43.5 mA. 60 Hz 37.4 mA.
•\tCoil resistance of 253 Ω.
•\tCoil Inductance (H) Armature OFF 0.81, Armature ON 1.55.
•\tPower consumption 0.9 VA at 60 Hz.
•\t2 Pole rated load 5 A at 250 V ac, 5 A at 30 V dc. (resistive load).
•\t2 Pole rated load 2 A at 250 V ac, 3 A at 30 V dc (inductive load).
•\tRated carry current and Max switching current 5 A.
•\tMax switching voltage 380 V ac, 125 V dc.
•\tContact resistance 100 mΩ max.
•\tDestruction vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•\tMalfunction vibration resistance 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•\tOperate set time 15 ms max.
•\tIndustrial PINS with higher conductivity, less temperature increase.
•\tBalanced performance.
•\tTransparent housing.
•\tRelays have CE marking.
•\tWeight of the relay is 20 g approx.

Omron Relay Applications.

•\tPlastic injection machines.
•\tShrink wrap machines.
•\tVertical and horizontal packaging machines.
•\tSafety systems.
•\tHeat tunnels.
•\tRobotic systems.
•\tPackaging systems.

Solid State Relay Suitable Markets.

•\tAutomotive.
•\tFood and beverage.
•\tPackaging.
•\tSemiconductor.
•\tWaste water treatment plants.
•\tSecurity detention.
•\tEnergy.

Suitable Connecting Sockets for the General Purpose relay/ Solid State Relay.

Part P2RF-08-PU, Stock number 1113067, Push in Plus terminal block. Track surface mounting socket.

Suitable Mounting Track, Track Connecting Socket for Solid State Relay.

•\tMounting track (L) 50 cm x (T) 7.3 mm, PFP-50N, Stock number 8278400.
•\tMounting track (L) 1 m x (T) 7.3 mm, PFP-100N, Stock number 8278403.
•\tMounting track (L) 1 m x (T) 16 mm, PFP-100N2, Stock number 8278406.

Solid State Relay Suitable End Plate.

•\tPFP-M, Stock number 8278419.
•\tDIN Rail mounting you must use an end plate.

Solid State Relay Suitable Spacer.

•\tPFP-S, Stock number 8278412.
