G3NA Series
Omron G3NA Hockey-puck-style solid state relays available in a wide range of currents and voltage (5 to 90A, max 660V ac)
All models have the same compact dimensions to provide an uniform mounting pitch
Protective cover for greater safety
Indicator enables monitoring operation
Built-in varistor absorbing external surges

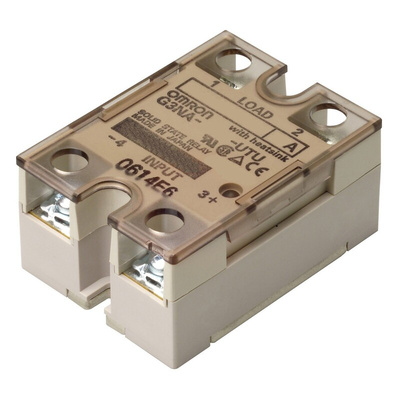

G3NA-205B-UTU DC5-24 General Purpose SSR – Solid State Relay.
G3NA series of SSR – Solid state Relays have compact features with a uniform mounting pitch including a built-in varistor which absorbs external surges. Indicators are included as is a protective cover for added safety, screw terminals. UTU certification model.
Features and Benefits of G3NA-205B-UTU DC5-24 General Purpose SSR – Solid State Relay.
•Phototriac coupler.
•Zero Cross Function.
•Yellow indicator.
•Applicable Output load 5 A at 24 to 240 V ac (When the SSR – Solid state relay is used with silicon grease applied to the heat sink depending on the ambient temperature).
•Rated input voltage 5 to 24 V dc.
•Screw terminal.
•Hockey puck style.
SSR – Solid state relay Input Ratings at 25°C Ambient.
•Operating voltage 4 to 32 V dc.
•Impedance 7 mA max (with a constant current input circuit system UTU is 15 mA max).
•Must operate voltage 4 V dc max.
•Must release voltage 1 V dc min
SSR – Solid state relay Output.
•Rated load voltage 24 to 240 V ac.
•Load voltage range 19 to 264 V ac.
•Load current with heat sink 0.1 to 5 A at 40°C.
•Load current without heat sink 0.1 to 3 A at 40°C.
•Inrush current 60 A (60 Hz, 1 cycle).
G3NA-205B-UTU DC5-24 SSR – Solid State Relay Additional Features.
•Operate time of load power source cycle + 1 ms max (dc input).
•Operate time 3/2 of load power source cycle + 1 ms max (ac input)
•Output ON voltage drop 1.6 V (RMS) max.
•Leakage current 5 mA max (at 100 V dc), 10 mA max (at 200 V ac).
•Vibration resistance – destruction – 10 to 55 to 10 Hz, 0.75 mm single amplitude (1.5 mm double amplitude).
•Shock resistance – destruction – 1000 m/s²
•Ambient operating temperature -30°C to 80°C
•SSR Weight 60 g
•RoHS Compliant.
•UTU Certified
Mounting Plate for the G3NA Series SSR – Solid State Relay.
Part number R99-11, Stock number 8278478. One-touch mounting plate.
What does Zero Cross Function mean in SSR in Solid State Relays?
Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.
