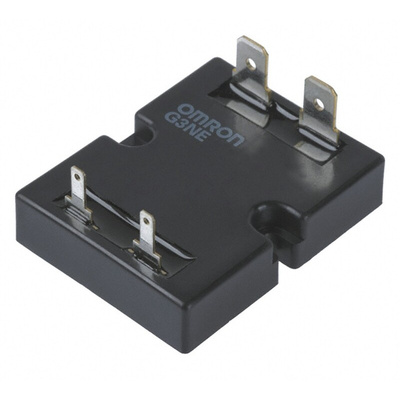

G3NE-220T-US DC12, Omron G3NE Series Solid State Relay, 20 (With Heatsink) A, 5 (Without Heatsink) A Load, Panel Mount, 264 V ac Load,, Реле

G3NE Series

The G3NE Series of Omron Compact Solid State Relays, 5 to 20A

Wide array of features:-

Dedicated, high grade compact aluminium PCB and power elements.
Built-in varistor effectively absorbs external surges.

G3NE-220T-US DC12 SSR – Solid State Relay.

Compact low cost series of switching solid state relays with a wide range of load voltages 75 to 264 V ac. Aluminium PCB and power elements. Built-in varistor absorbing external surges. Quick connect 110 input terminals, 250 output connections.

Features and Benefits of G3NE-220T-US DC12 Compact SSR – Solid State Relay.

•Phototriac
•Zero cross function
•No indicator.
•Rated output load 20 A at 100 to 240 V ac.
•Rated input voltage 12 V dc. (dependant on the ambient temperature).

SSR – Solid state relay Input Rating at 25°C Ambient.

•Operating voltage 9.6 to 14.4 V dc.
•Must operate voltage 9.6 V dc max.
•Must release voltage 1 V dc min.
•Input impedance with Zero cross function 600 Ω ±20%
•Input impedance without zero cross function 800 Ω ±20%

SSR – Solid state relay Output.

•Rated load voltage 100 to 240 V ac.
•Load voltage range 75 to 264 V ac.
•Load current with heat sink 0.1 to 20 A at 40°C. (when using a dedicated heat sink or radiation plate).
•Load current without heat sink 0.1 to 5 A at 40°C.
•Inrush current 220 A (60 Hz, 1 cycle).
(relay load current is dependent on the ambient temperature)

Additional Features G3NE-220T-US DC12 Compact SSR – Solid State Relay.

•Operate and release time of load power source cycle + 1 ms max.
•Output ON voltage drop 1.6 V (RMS) max.
•Leakage current 2 mA max at 100 V ac, 5 mA max at 200 V ac.
•Vibration resistance – destruction 10 to 55 to 10 Hz, 0.75 mm single amplitude.
•Shock resistance – destruction 1000 m/s².
•Operating temperature -30°C to 80°C.
•SSR – Solid state relay Weight 37 g.

Mounting Plate for the G3NE Series SSR – Solid State Relay.

•Part number R99-12, Stock number 8278478. One-touch mounting plate.

What does Zero Cross Function mean in SSR in Solid State Relays?

Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.

Standards

UL 508, TUV, VDE, EN 60950.
