G3PE-525B DC12-24, Omron G3PE Three Phase Series Solid State Relay, 25 A Load, DIN Rail Mount, 528 V ac Load, 30 V dc Control, Реле

G3PE Series

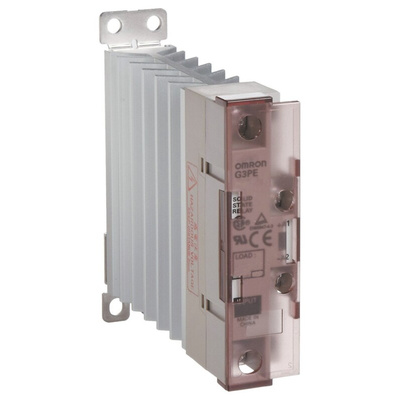

Omron G3PE Series solid state relays with heat sinks for a wide range of applications.

Models also available with no zero cross
Compact with a slim profile
Improved surge dielectric strength for output circuits
Screw and DIN track mounting possible
RoHS compliant

G3PE-525B DC12-24 SSR – Compact Single Phase Solid State Relay.

The G3PE SSR – Solid State Relay series have a slim compact design complete with built-in heat sinks. Solid state contactors for single phase heaters, reduced installation and available to DIN rail mount or screw mount. RoHS compliant with surge protection.

Features and Benefits of G3PE-525B DC12-24 Compact SSR – Solid State Relay.

•Single-phase.
•Phototriac coupler.
•Yellow indicator.
•Rated input voltage 12 to 24 V dc.
•Zero cross function.
•Applicable load 25 A, 200 to 480 V ac. (dependent upon the ambient temperature).
•Built-in heat sink.

SSR – Solid State Relay Input Rating at 25°C.

•Operating voltage range 9.6 to 30 V dc.
•Rated input current 7 mA max.
•Must operate voltage 9.6 V dc max.
•Must release voltage 1 V dc max.

SSR – Solid State Relay Output.

•Rated load voltage 200 to 480 V ac, 50 / 60 Hz.
•Load voltage range 180 to 528 V ac, 50 / 60 Hz.
•Applicable load current 0.1 to 25 A at 40°C. (dependent upon the ambient temperature).
•Inrush current 220 A, 60 Hz, 1 cycle.
•Resistive load 10 kW at 400 V ac.

Additional Features G3PE-525B DC12-24 Compact SSR 3-Phase SSR – Solid State Relay.

•Operate time 1 ms max.
•Release time load power source cycle + 1 ms max.
•Output ON voltage drop 1.8 V (RMS) max.
•Leakage current 20 mA max at 480 v ac.
•Vibration resistance 10 to 55 to 10 Hz, 0.375 single amplitude, 0.75 mm double amplitude – DIN rail mounted.
•Shock resistance destruction 294 m/s² - DIN rail mounted.
•Operating temperature – ambient -30°C to 80°C, no icing or condensation.
•Relay weight 240 g.

What does Zero Cross Function mean in SSR in Solid State Relays?

Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.

Standards

UL508, CSA22.2 No.14, EN 60947-4-3.
