G3PE Series
Omron G3PE Series solid state relays with heat sinks for a wide range of applications.
Models also available with no zero cross
Compact with a slim profile
Improved surge dielectric strength for output circuits
Screw and DIN track mounting possible
RoHS compliant

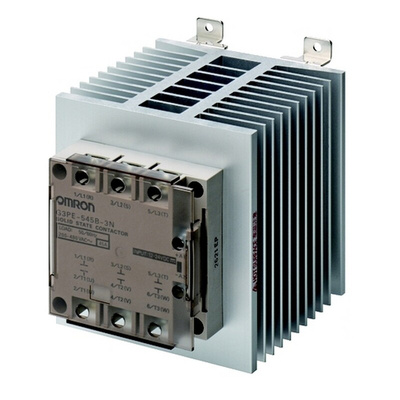

G3PE-545B-3N DC12-24 SSR – Compact 3-Phase Solid State Relay.
The G3PE SSR – Solid State Relay series have a slim compact design complete with built-in heat sinks. Solid state contactors for 3-phase heaters, reduced installation and available to DIN rail mount or screw mount. RoHS compliant with surge protection.
Features and Benefits of G3PE-545B-3N DC12-24 Compact SSR – Solid State Relay.
•Three-phase.
•Phototriac coupler.
•Yellow indicator.
•Rated input voltage 12 to 24 V dc.
•Zero cross function.
•DIN Rail Mounting available
•Applicable load 45 A, 200 to 480 V ac. (dependent upon the ambient temperature).
•3 Poles.
•Built-in heat sink.
SSR – Solid State Relay Input Rating at 25°C.
•Operating voltage range 9.6 to 30 V dc.
•Rated input current 10 mA max. (24 V dc).
•Must operate voltage 9.6 V dc max.
•Must release voltage 1 V dc max.
SSR – Solid State Relay Output.
•Rated load voltage 200 to 480 V ac, 50 / 60 Hz.
•Load voltage range 180 to 528 V ac, 50 / 60 Hz.
•Applicable load current 45 A at 25°C. (dependent upon the ambient temperature).
•Load current minimum 0.5 A.
•Inrush current 440 A, 60 Hz, 1 cycle. Peak value.
•Resistive load 37.4 kW at 480 V ac.
Additional Features G3PE-545B-3N DC12-24 Compact SSR 3-Phase SSR – Solid State Relay.
•Operate and release time load power source cycle + 1 ms max.
•Output ON voltage drop 1.8 V (RMS) max.
•Leakage current 20 mA max at 480 v ac.
•Vibration resistance 10 to 55 to 10 Hz, 0.175 single amplitude, 0.35 mm double amplitude – DIN rail mounted.
•Vibration resistance 10 to 55 to 10 Hz, 0.375 single amplitude, 0.75 mm double amplitude – Screw mounted.
•Shock resistance destruction 294 m/s² (reverse mount 98 m/s²).
•Operating temperature – ambient -30°C to 80°C, no icing or condensation.
•Relay weight 2 kg.
What does Zero Cross Function mean in SSR in Solid State Relays?
Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.
Standards
UL508, CSA22.2 No.14, EN 60947-4-3.
