G3PE Series
Omron G3PE Series solid state relays with heat sinks for a wide range of applications.
Models also available with no zero cross
Compact with a slim profile
Improved surge dielectric strength for output circuits
Screw and DIN track mounting possible
RoHS compliant

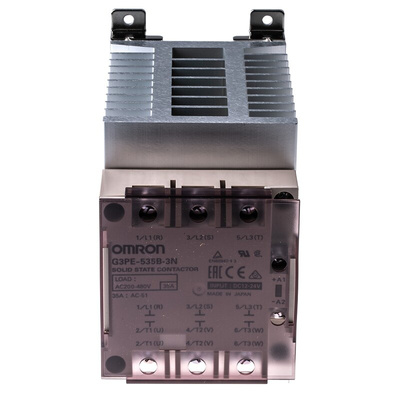

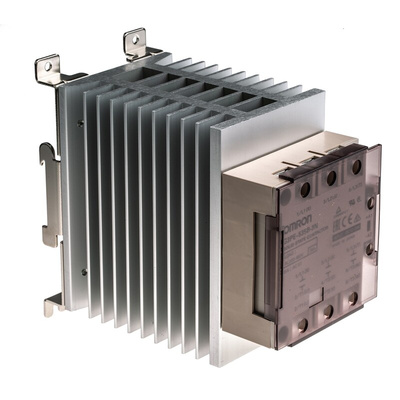

G3PE-535B-3N DC12-24 SSR – Compact 3-Phase Solid State Relay.
The G3PE SSR – Solid State Relay series have a slim compact design complete with built-in heat sinks. Solid state contactors for 3-phase heaters, reduced installation and available to DIN rail mount or screw mount. RoHS compliant with surge protection.
Features and Benefits of G3PE-535B-3N DC12-24 Compact SSR – Solid State Relay.
•Three-phase.
•Phototriac coupler.
•Yellow indicator.
•Rated input voltage 12 to 24 V dc.
•Zero cross function.

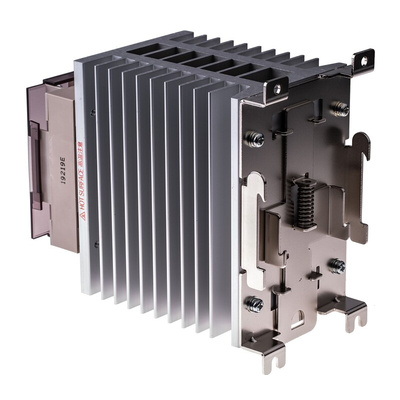

•DIN Rail Mounting available
•Applicable load 43 A, 200 to 480 V ac. (dependent upon the ambient temperature).
•3 Poles.
•Built-in heat sink.
SSR – Solid State Relay Input Rating at 25°C.
•Operating voltage range 9.6 to 30 V dc.
•Rated input current 10 mA max. (24 V dc).
•Must operate voltage 9.6 V dc max.
•Must release voltage 1 V dc max.
SSR – Solid State Relay Output.
•Rated load voltage 200 to 480 V ac, 50 / 60 Hz.
•Load voltage range 180 to 528 V ac, 50 / 60 Hz.
•Applicable load current 35 A at 25°C. (dependent upon the ambient temperature).
•Load current minimum 0.5 A.
•Inrush current 440 A, 60 Hz, 1 cycle. Peak value.
•Resistive load 29 kW at 480 V ac.
Additional Features G3PE-535B-3N DC12-24 Compact SSR 3-Phase SSR – Solid State Relay.
•Operate and release time load power source cycle + 1 ms max.
•Output ON voltage drop 1.8 V (RMS) max.
•Leakage current 20 mA max at 480 v ac.
•Vibration resistance 10 to 55 to 10 Hz, 0.175 single amplitude, 0.35 mm double amplitude – DIN rail mounted.
•Vibration resistance 10 to 55 to 10 Hz, 0.375 single amplitude, 0.75 mm double amplitude – Screw mounted.
•Shock resistance destruction 294 m/s² (reverse mount 98 m/s²).
•Operating temperature – ambient -30°C to 80°C, no icing or condensation.
•Relay weight 1.65 kg.
What does Zero Cross Function mean in SSR in Solid State Relays?
Zero cross function will allow the relay to turn ON when the AC load power supply approaches 0 V suppressing any noise generated with a sudden load current increase. Zero cross function is effective across 2 types of noise, noise on power lines and noise emitted into open space.
Standards
UL508, CSA22.2 No.14, EN 60947-4-3.
