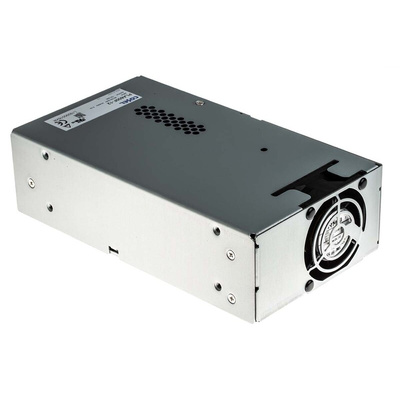

Cosel Switching Power Supply, PLA600F-12, 12V dc, 50A, 600W, 1 Output, 85 → 264V ac Input Voltage, Источник питания

PLA600F Series Single Output Switch Mode Power Supply

PLA600F embedded switch mode power supplies (SMPS) from Cosel feature a compact design, with a low profile design that meets 2U height (61 mm). PLA600F switching power suppliers are a cost effective solution with a long lifetime.

Features and Benefits:

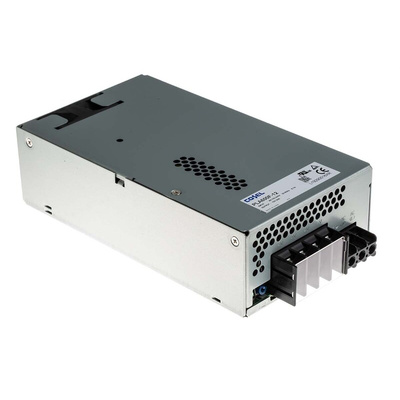

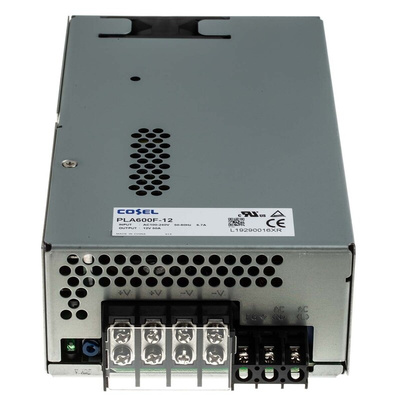

Screw hold type terminal block
Green LED operating indicator
Slow fan speed at no load
Harmonic attenuator
Different optional functions are available

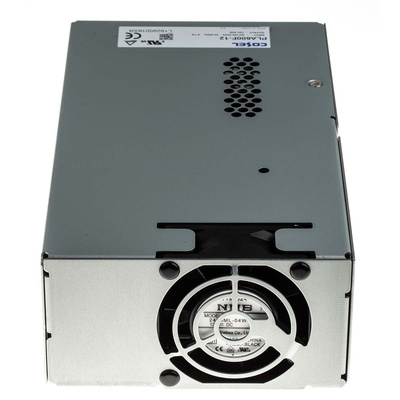

Forced cooling by an internal fan

Note

Carry out the necessary testing on end equipment with the power supply installed as per required EMC/EMI regulations

Standards

UL60950-1, cUL (CSA60950-1), EN60950-1, EN50178 Complies with DEN-AN
Conducted noise complies with FCC-B, VCCI-B, CISPR22-B, EN55011-B, EN55022-B
Harmonic attenuator complies with IEC61000-3-2 class A
Complies with SEMI F47

Approvals

UL, US, TUV, CE

Cosel Embedded Switch Mode Power Supply

The Cosel PLA series 600W single output AC to DC embedded switch-mode power supply has an output current of 50A at 12VDC. It has a low start-up time and all units come with an overcurrent rating of over 105% of the rating and an automatic recovery feature. For user convenience, it is fitted with a green LED to indicate operation. It has a universal input supply voltage rating ranging from 85VAC to 264VAC.

Features and Benefits

Wide temperature ranges between -20°C and 70°C
Harmonic attenuator
Low profile design (PLA300F: 1U size, PLA600F: 2U size)
Screw hold type terminal block
Enclosed package type
Chassis mount

Certifications

SEMI F-47 (option-U: refer to instruction manual)
UL60950-1
C-UL (CSA60950-1)
EN60950-1
EN50178 approved
UL508 approved (PLA15F, PLA30F, LA50F, PLA100F, PLA150F), complies with DEN-AN
