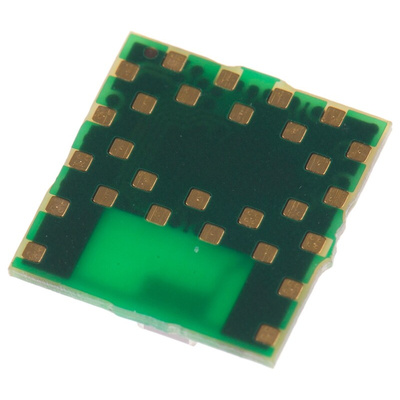

Panasonic PAN1325B-HCI-85 Bluetooth Chip 2.1, Модуль

PAN1315/25 v2.1 Bluetooth® EDR HCI Module, Panasonic

The PAN1315/1325 series from Panasonic are Host Controlled Interface (HCI) Bluetooth modules with Enhanced Data Rate (EDR). These modules are based upon the seventh generation CC2560 Bluetooth core integrated circuit from Texas Instruments and are 100% pin compatible with the next generation of Bluetooth Dual Mode Low Energy devices.

Features

FCC and IC listed, CE complied
Dimensions: PAN1325 with antenna 9.0 x 9.5 x 1.8 mm, PAN1315 without antenna 9.0 x 6.5 x 1.8 mm
Operating Temperature Range: -20°C to +70°C
Supply Voltage Range: 1.7 - 4.8 V
Texas Instruments’ CC2560 7th generation Bluetooth controller inside
Integrates with TI's low-power MSP430 microprocessor
Profiles: Serial Port Profile (SPP), Health Device Profile (HDP), Audio and others
Very fast algorithm for both Asynchronous Connection-Less (ACL) and Extended Synchronous Connections (eSCO)
Supports Extended Range Tx power with 10.5dBm typical output
Low power scan method and inquiry scans at 1/3rd normal power

Interfaces

3.25 MBaud UART with transport layer detection (HCI UART, HCI Three and Four Wire UART)
PCM/I2S interface for digital audio
WLAN coexistence interface
General purpose I/Os with interrupt capabilities
