2716033, Phoenix Contact UK Series G 5/ 3 Non-Fused Terminal Block, 3-Way, 32A, 24 → 12 AWG Wire, Screw Termination

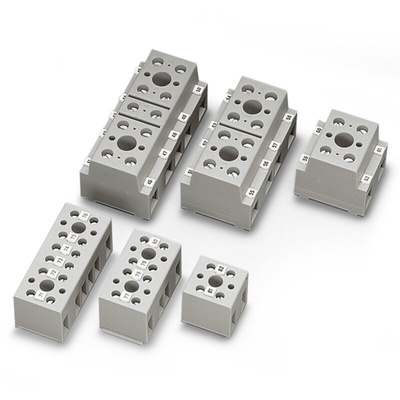

G 5/2 Device Terminal Blocks

The G 5/2 non-fused terminal blocks are typically for mounting the block onto a device. It boasts touch-proof shock protection, compactness so you can add it to even the tightest of gaps and is rated at a surge voltage of 6Kv. This unit is typically used in network connections for electric and electronic equipment, thanks to it not needing a DIN rail.

Features and benefits:

• Device terminal block for direct mounting
• 15 - 32 A current rating
• Touch-proof shock protection
• Finger protection
• The housing ribs engage with one another below on both sides for simple attachment
• Mounting with two screws per block (apart from the 2 way version)
• Maintenance-free conductor connection
• Simple multi-conductor connection
• Conductor connection with or without ferrule

Note

698-8076 is a bridged, 2 way terminal block and 829-5773 is a DIN Rail mounted duplex receptacle.

Standards

In accordance with IEC 60947-7-1 / IEC 60998.

Approvals

CUL, GOST, UL, CSA.

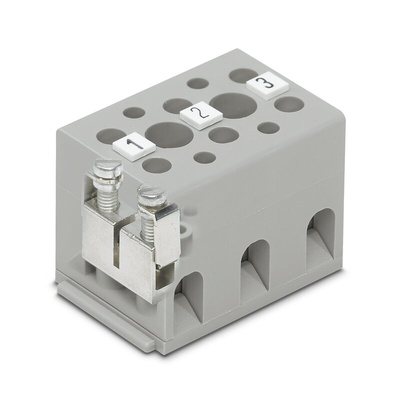

Phoenix Contact Non-Fused Terminal Block, Grey, 6 Connections - G 5/ 3 - 2716033

Keep your wire connections safe and sound with this terminal block from Phoenix Contact. You can use it to safely secure wires to each other in commercial and domestic networks. As it accommodate cables between 12 and 24AWG, it's a versatile option to have on hand. With a 32A maximum load current, it can handle the demands of heavy-load industrial applications.
The block's housing is made from sturdy polyamide, which has insulating properties, so you can rely on it to prevent electric shocks. At just 24 (H) x 22 (L) x 31mm (W), this unit is compact and fits easily into tight spots. Its screw connection method keeps wires firmly in place, even if your system vibrates. A standard M3 screw thread type means this terminal block is widely compatible.

Features & Benefits

• Direct mounting type means you don't need a DIN rail for installation
• Individual units can lock onto one other to create more complex connections
• Polyamide housing is resistant to wear and tear for a long lifespan even in heavy-duty applications
• Comes with three different position options, for added flexibility

Datasheet

Line Drawing - 2716033
