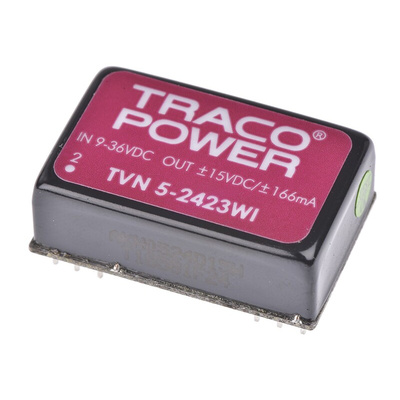

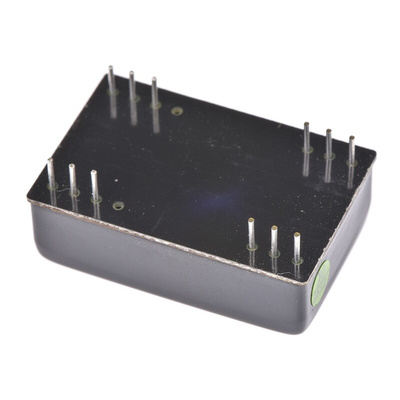

TVN 5-2423WI, TRACOPOWER TVN 5WI DC-DC Converter, ±15V dc/ ±200mA Output, 9 → 36 V dc Input, 5W, Through Hole, +85°C Max Temp, Преобразователь

Traco 5W Isolated DIP24 DC/DC Converters - TVN 5WI Series

The Traco Power TVN 5WI series is a ultra-low ripple and noise 5 Watt DC/DC converter in six side shielded metal package. Standard features of this power supply include remote On/Off, over voltage protection, under voltage shut down and short circuit protection. The TVN 5WI series of DC-DC converters offer wide 4:1 input Voltage ranges in a DIP-24 package.
The conducted noise of the TVN 5WI complies with EN 55022 class B and makes these converters the ideal solution for audio, measurement and detection circuits.

Ultra-low ripple and noise 10 mVp-p typical
Ultra wide 4:1 input voltage range 9–36, 18–75 VDC
High efficiency up to 88%
Operating temperature range –40°C to +85°C without derating
I/O isolation 1600 VDC
DIP-24 package
Adjustable output voltage
No minimum load required
Input filter to meet EN55022, class A
Remote On/Off
Under voltage lockout
Lead free design, RoHS compliant

Approvals

UL 60950-1

TRACOPOWER 5W DC/DC Converter Module

TRACOPOWER TVN 5WI series is a ultra-low ripple and noise 5 Watt DC/DC converter in a six sided shielded metal package. Featuring remote On/Off, over voltage protection, under voltage shut down and short circuit protection. The TVN 5WI series of DC-DC converters offer wide 4:1 input Voltage ranges in a DIP-24 package.

Features and Benefits

• Ultra low ripple and noise 10mVp-p typ.


• DIP-24 package


• Regulated


• Operating temperature range –40°C to +90°C


• I/O isolation 1600 VDC functional


• Remote On/Off

Applications

The conducted noise of the TVN 5WI complies with EN 55022 class B and makes these converters the ideal solution for audio, measurement and detection circuits.
