R-745.0P, Recom Switching Regulator, Through Hole, 3 → 5.5V dc Output Voltage, 6.5 → 28V dc Input Voltage, 4A, Импульсные стабилизаторы

R-7xxxP Series

Non-isolated
Positive step down integrated switching regulator
Wide input voltage range
Adjustable output voltage via external resistors
Remote On/Off Control
Over load and continuous short circuit protection
Vertical mount, SIP-12 package

Note

Operating temperature quoted without derating output.
Adjustable output voltage range shown in brackets.

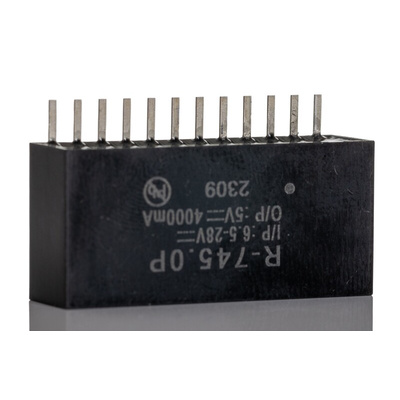

RECOM Switching Regulator, SIP Package Type, 1.4W Power Rating - R-74 Series - R-745.0P

Give your devices the power they need with this switching regulator from RECOM. It's designed to take an input of between 6.5 and 28V DC and turn it into a reliable output that you can adjust to deliver between 3 and 5.5V DC. Thanks to an efficiency level of up to 95%, this unit is an ideal choice for anywhere you're looking to trim power usage and keep waste heat low. A remote on/off function gives you the control you need to keep things running smoothly.

Features & Benefits

• Safe to use in challenging settings, thanks to an operating temperature range of -40°C to +85°C
• Through-hole mounting for easy installation
• Compact dimensions of 9.1 (W) x 32.2 (L) x 15mm (H) mean it won't take up much space in your setup

Applications

• Lighting control systems
• Telecommunications devices
• Security cameras

Does this switching regulator deliver a steady output?

Yes, this device has a load regulation of 1%, so you can rely on it to maintain a steady output voltage.

How much does this product weigh?

It tips the scales at only 9g, so it's ideal for setups where you want to keep weight to a minimum.

R-7XXX Series DC/DC Converter

Selection Guide - WE POWER YOUR PRODUCTS
