RD-1212D/P, Recom RD DC-DC Converter, ±12V dc/ ±84mA Output, 10.8 → 13.2 V dc Input, 2W, Through Hole, +85°C Max Temp -40°C, Преобразователь

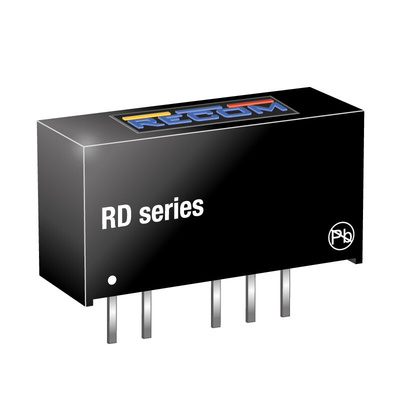

Recom 2W SIP Dual Output Unregulated Isolated DC-DC Converter - RD Series

Unregulated outputs
1kVdc isolation
Power sharing on outputs
Short circuit protected
Efficiency up to 86%
UL94V-0 package material
Industry standard SIP7 package

Note

MTBF to MIL-HDBK 217F.
Operating temperature is without derating.

Standards

EN-60950-1

RECOM DC-DC Converter, 10 GΩ/min Isolation Resistance, 0.1% Load Regulation - RD Series - RD-1212D/P

Need to even out your current? Choose this DC-DC converter from RECOM to turn a 10.8 to 13.2V DC input into a ±12V DC output. It's an isolated dual-output unit, so you can power two devices simultaneously. With a wide operating temperature range between -40°C and +85°C, it withstands harsh industrial environments. To boost efficiency and minimise downtime, the component has continuous short-circuit protection. Thanks to an MTBF of just under one million hours, you can rely on it to go the distance.

Features & Benefits

• Through-holes for quick and secure PCB mounting
• Narrow dimensions of 10.2 (H) x 19.65 (L) x 7.05mm (W) to fit comfortably in confined spaces
• SIP-7 package easily integrates into existing systems, saving time

Applications

• Telecommunications equipment
• Industrial automation
• Consumer electronics
• Robotics systems

How efficient is this DC-DC converter?

It has an efficiency rating of up to 84%. This means it uses low levels of power while minimising heat loss.

Does this device protect against electric shock?

Yes. It has an isolation voltage of 1kV DC, so you are protected against shocks.
