RK-1505S, Recom RK DC-DC Converter, 5V dc/ 200mA Output, 13.5 → 16.5 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C, Преобразователь

RECOM DC-DC Converter, 78% Efficiency, 3kV DC Isolation - RK Series - RK-1505S

When you need a conversion solution for demanding industrial setups, go for this DC-DC converter from RECOM. It takes an input from 13.5 to 16.5V DC and steps it down to a stable 5V DC output that's compatible with your battery-powered kit. As the unit offers isolation up to 3kV DC, you can count on it to shield you and your equipment effectively against harmful voltage surges. A 78% efficiency rating indicates it produces little waste energy as heat and stays cool without a heatsink or fan.

Features & Benefits

• Wide operating temperature range from -40°C to +90°C to suit harsh settings
• Output voltage adjustable ±5%, so you can tailor the load to precisely suit your equipment
• Flame-retardant case for fire safety

Applications

• Medical devices
• IGBT driver applications
• Motor starting

What's the advantage of this product's SIP7 format?

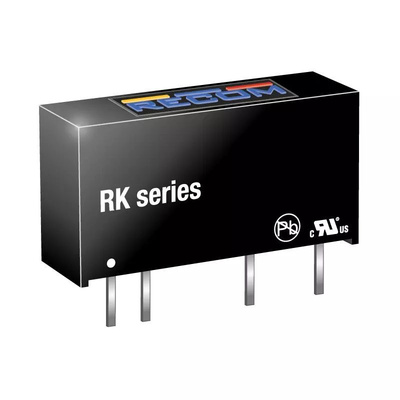

This converter's SIP7 package has a compact size of 19.65 (L) x 6 (W) x 10.2mm (H) that makes it easy to fit onto crowded PCBs. Thanks to its industry-standard pinout configuration, you'll breeze through installation with through-hole mounting.
