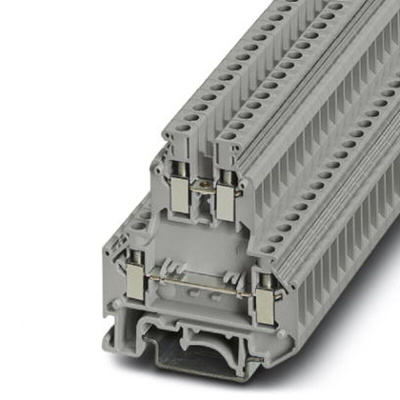

2774017, Phoenix Contact UKK 5 Series Grey Double Level Terminal Block, 4mm², Double-Level, Screw Termination

UKK-5 Double Level Terminal Block

Double-level terminal block.

Cross section: 0.2 mm² - 4 mm²
AWG: 24 - 12
Connection type: Screw connection
Width: 6.2 mm
Color: gray
Mounting type: NS 35/7,5, NS 35/15, NS 32

Phoenix Contact Double-Level Terminal Block, 0.2 to 4mm² Conductor CSA, 24 to 12AWG - UKK 5 - 2774017

Choose this terminal block from Phoenix Contact when you need a reliable way of joining wires of varying sizes. It uses screw connections to quickly secure conductors together on a non-permanent basis. This makes it easy for you to rearrange wiring by simply undoing the screws, making adjustments, then retightening. As it supports cables with cross-sections between 0.2 and 4mm², the unit connects devices of different sizes without the need for rewiring.
Thanks to the block's two connection levels, you can link multiple appliances with one module to save space. A 32A current rating makes it ideal for reliably transferring demanding charges. It mounts onto both 7.5 and 15mm-high DIN rails for greater flexibility in your installation. Designed with a slim width of 6.2mm, the component fits into busy setups to maximise the packing density of your DIN rail.

• Supports large conductor labels for easier wire identification
• Has passed temperature-rise tests, ensuring good performance under harsh conditions
• Protective polyamide insulation prevents injuries from overcurrents and short-circuits
• Conductor strips work with both stranded and solid conductor cores to eliminate the need to replace wiring or devices
