401-52019 152-42-GW24-PO-X-BK, HellermannTyton Cable Boot Black, Fluid Resistant Elastomer Adhesive Lined, 24mm, Термоусадочный патрубок

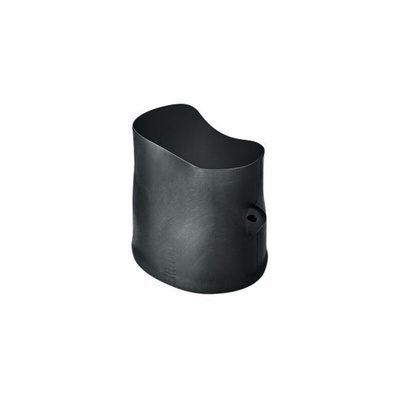

HellermannTyton 150 Series Straight Cable Boot

Heat shrink straight cable boot that can be used in conjunction with a circular grooved adaptor. This provides strain relief and environmental sealing.

Standards

VG 95343 part 6 & part 18, DEF 59-97, BSG198 part 5

HellermannTyton Heat Shrink Boot, 24mm Pre-Heated Diameter, 14kV/mm Dielectric Strength - Helashrink 150 Series - 401-52019 152-42-GW24-PO-X-BK

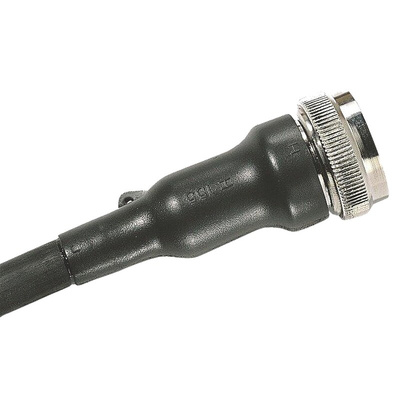

Protect sensitive cable joints with this heat shrink boot from HellermannTyton. It slots over a connector and shrinks down to size when heated, providing an effective seal against dust and moisture. The reinforced inner lip relieves stress along the cable and protects against twisting to boost longevity. For added peace of mind, the boot's cross-linked polyolefin body acts as an effective insulator to safeguard users from shocks.

Features & Benefits

• Performs without a glitch in operating temperatures from -70°C to +150°C
• Accepts wires with cross-sectional areas between 6 and 23mm², making it a versatile option
• Durable W24 adhesive resists chemicals, oils and water to deliver top performance in demanding conditions

Applications

• A/V equipment
• Data centres
• Entertainment industry

What temperature will shrink this boot?

This boot shrinks and seals around cables when you heat it to at least +135°C.

Cable Boot Data Sheet

Line Drawing - 401-52019 152-42-GW24-PO-X-BK
