103H5205-0440, Sanyo Denki 103H5 Series Hybrid, Single Shaft Stepper Motor, 0.20Nm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft, Шаговый двигатель

Sanyo Denki Sanmotion 103H5 Series Stepper Motor

Sany Denki range of Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered

Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available

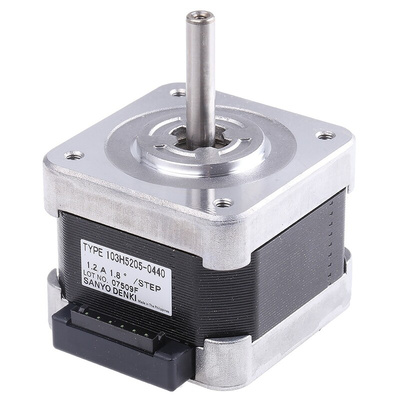

Sanyo Denki Stepper Motor, 1.8° Step Angle, 0.2Nm Holding Torque - SANMOTION 103H5 Series - 103H5205-0440

Ensure precise movements and speed regulation for your computer-controlled machinery using this stepper motor from Sanyo Denki. It works by breaking down the rotation of its built-in electromagnetic coil into measured steps, making it suitable for devices that need guided control. The rotor has a minimal static error angle of ±0.09°, so you can rely on this unit for accurate performance. Its compact shaft dimensions of 24 (length) x 5mm (diameter) make it suitable for use in small machines.

Features & Benefits

• Wide operating temperature range between -10℃ and +50℃ for use in harsh environments
• Holding torque of 0.2Nm for stable rotation

Applications

• Robotics
• Printing and scanning equipment
• Industrial fans

How does a hybrid stepper motor work?

A hybrid stepper motor features a rotor with two sets of teethed caps that enable half-stepping and microstepping motions for enhanced accuracy. Half-stepping means the motor can switch between turning on two phases or a single phase to maintain a precise angle. Microstepping works by transmitting signals to the magnetic coils that modify the movement of the rotor for smoother operation.
