103H5210-5240, Sanyo Denki 103H5 Series Hybrid, Single Shaft Stepper Motor, 0.51Nm Torque, 24 V, 1.8°, 42 x 42mm Frame, 5mm Shaft, Шаговый двигатель

Sanyo Denki Sanmotion 103H5 Series Stepper Motor

Sany Denki range of Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered

Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution

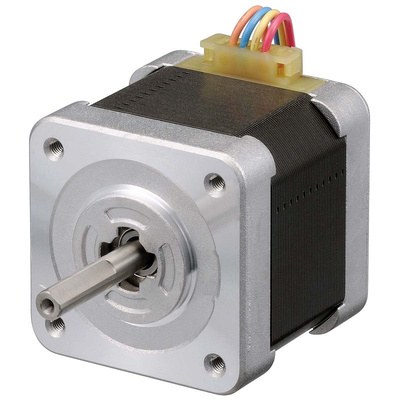

Leaded options also available

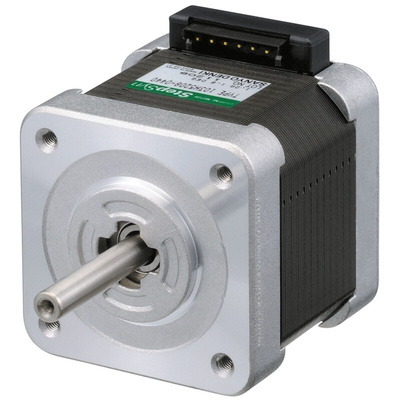

Sanyo Denki Stepper Motor, 1.8° Step Angle, 0.51Nm Holding Torque - SANMOTION 103H5 Series - 103H5210-5240

This stepper motor from Sanyo Denki is designed to help you regulate the position and speed of your industrial equipment. Thanks to its hybrid design, this unit is also capable of half-stepping and microstepping movements for enhanced precision. A broad operating temperature range between -10℃ and +50℃ means you can safely use this component in demanding environments. The holding torque of 0.51Nm keeps this motor securely in place on a shaft, so it won't dislodge in the event of heavy vibrations. Its light weight of 0.37kg means it will place minimal strain on your equipment.

Features & Benefits

• Current rating of 1A for use in low-power applications
• Low static angle error of ±0.09° for precise movement
• Mounts vertically or horizontally for flexible assembly
• Compact frame size of 42 (length) x 42mm (width) to add minimal bulk to your setup

Applications

• Computer devices
• Video cameras
• Packaging machinery
• Fluid control systems

Is this stepper motor safe to handle?

Yes, this stepper motor has an IP40 rating, which means it's touchproof and protected against tools and wires larger than 1mm in size for safe handling.

Sanyo Denki Stepper Motor

Sanyo Denki - Range Overview

103H5210-5240 Bipolar Stepper Motor - Data Sheet
