103H5210-0440, Sanyo Denki SANMOTION Series Hybrid, Single Shaft Stepper Motor, 0.37Nm Torque, 24V, 1.8°, 42 x 42mm Frame, 5mm Shaft, Шаговый двигатель

Sanyo Denki Sanmotion 103H5 Series Stepper Motor

Sany Denki range of Stepper Motors providing the user with a comprehensive range of options to ensure your application is covered

Offered in both Unipolar & Bipolar winding options
Single round and double round shaft designs with adequate length providing the user with a simple mounting solution
Leaded options also available

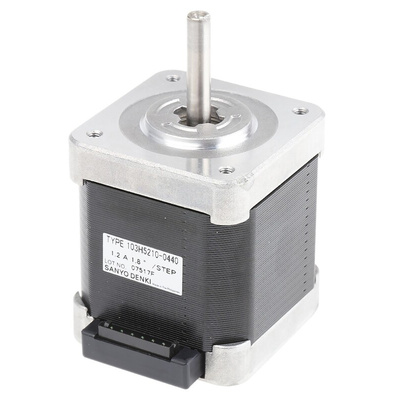

Sanyo Denki Unipolar Hybrid Single-Shaft Stepper Motor, 24V DC, 48mm Motor Length - 103H5210-0440

For the precise and controlled motion of rotating equipment, choose this stepper motor from Sanyo Denki. This device works by breaking up the rotation of its shaft into smaller rotations and transferring these movements to mechanical parts. The device has a current rating of 1.2A and a voltage rating of 24V DC, making it suitable for use in low-power applications. Its light weight of 370g means it will place minimal strain on your equipment. Thanks to its IP40 rating, it's finger-safe and protected against wires and tools larger than 1mm in size for added safety.

Features & Benefits

• Low resistance per phase of 3.3Ω for a stable and reliable connection
• Compact frame size of 42 (length) x 42 (width) x 48 (depth) for installation in tight spaces
• Holding torque of 0.37Nm for a secure hold
• Can be mounted vertically or horizontally for simple integration into an existing setup

Applications

• 3D Printers
• CNC Machines
• DVD devices

What's the operating temperature range of this motor?

This motor has a wide operating temperature range of -10°C to +50°C for use in challenging conditions.
